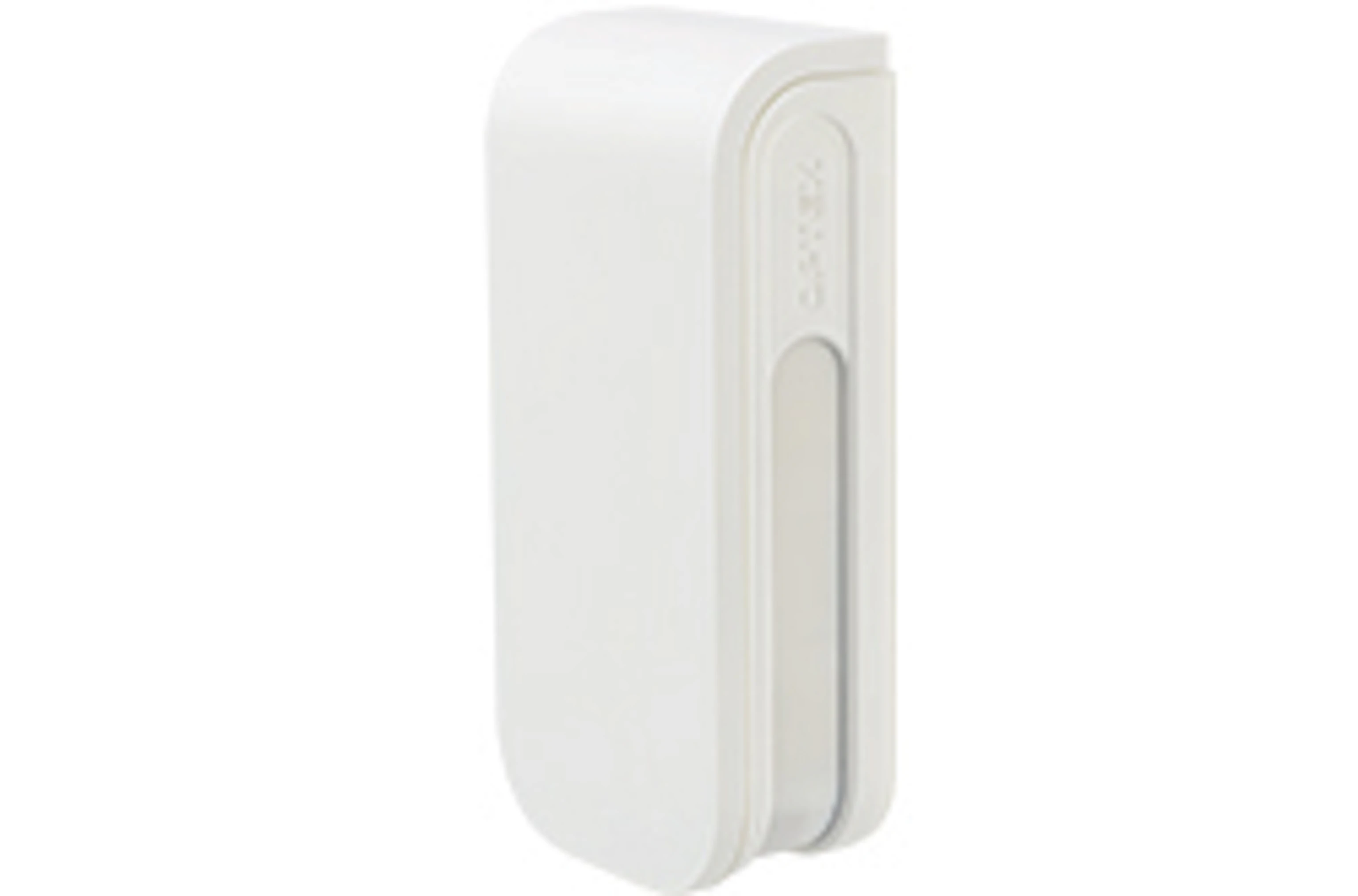

BX Shield serie
BXS-AM (W)
Passief Infrarood
24 m (80') : 12 m (40') aan elke kant, 4 zones : 2 zones aan elke kant, 180° smal
0.3 to 2.0 m/s (1' to 6'7/s)
Normaal: 2,0°C (3,6°F) bij 0,6 m/s Extreem hoog: 1,0°C (1,8°F) bij 0,6 m/s selecteerbaar voor elke zijde afzonderlijk
9.5 to 18 VDC
34 mA max. bij 12 VDC
2.0 ±1 sec.
60 sec. of minder(LED knippert)
28 VDC 0,1 A max., (Afzonderlijk : Rechts of Algemeen], (NO. of N.C.) selecteerbaar
28 VDC 0,1 A max., (Individueel : Links of Algemeen], (NO. of N.C.) selecteerbaar
N.C. 28 VDC 0.1 A max.
N.C. 28 VDC 0,1 A max. open wanneer frontdeksel, hoofd-unit of basiseenheid is verwijderd
Rode LED :1. Opwarmen 2. Alarm 3. Maskeerdetectie (DIP-schakelaar AAN of looptest)
-30°C to + 60°C (-22°F to +140°F)
95% max.
IP55
buiten
0.8 to 1.2 m (2'7" to 4')
430 g (15.2 oz.)
Schroef (4 x 20 mm) x 2
Filters
Filters
12m per kant detectie, buiten PIR bewegingssensor, standaard bedraad model.
