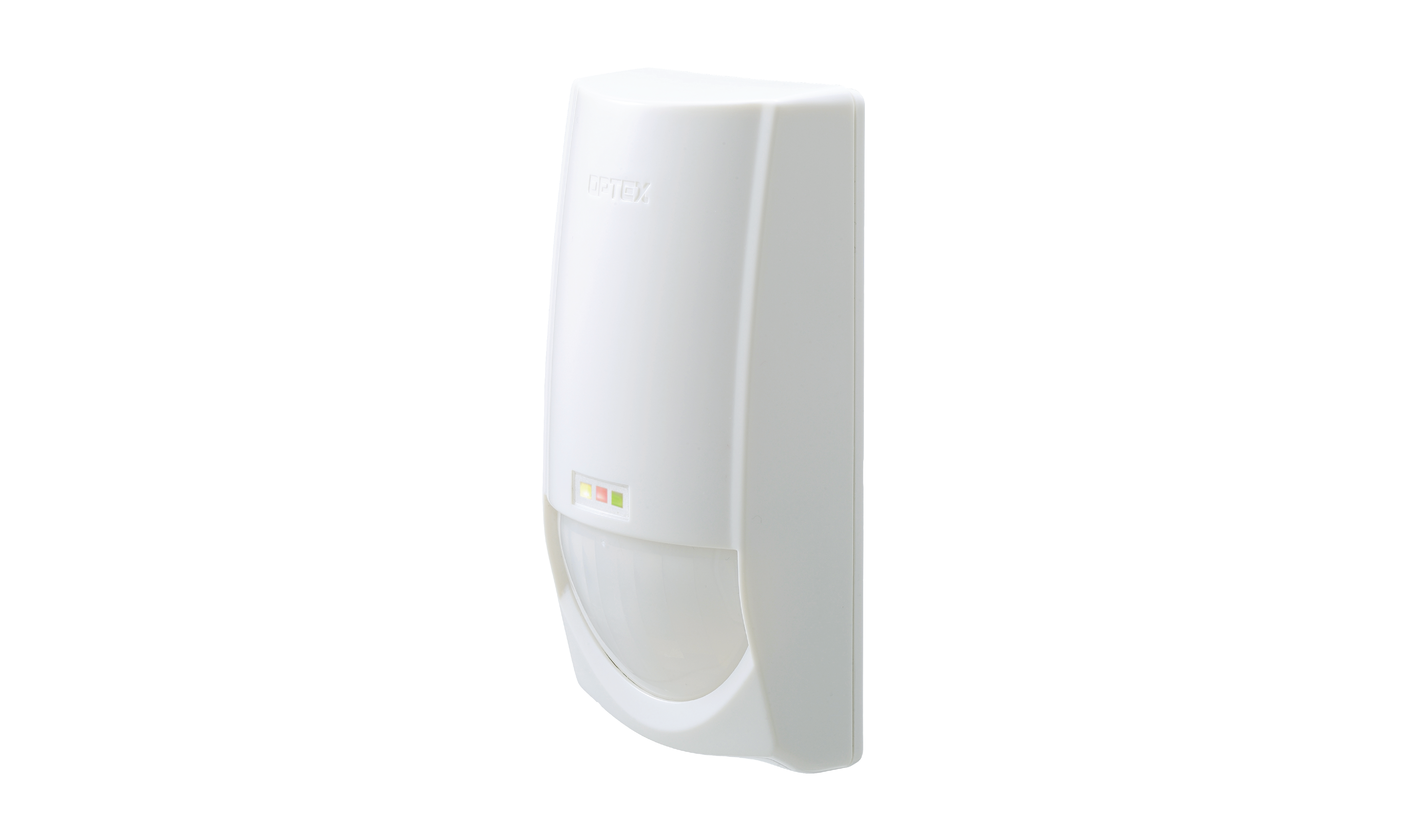

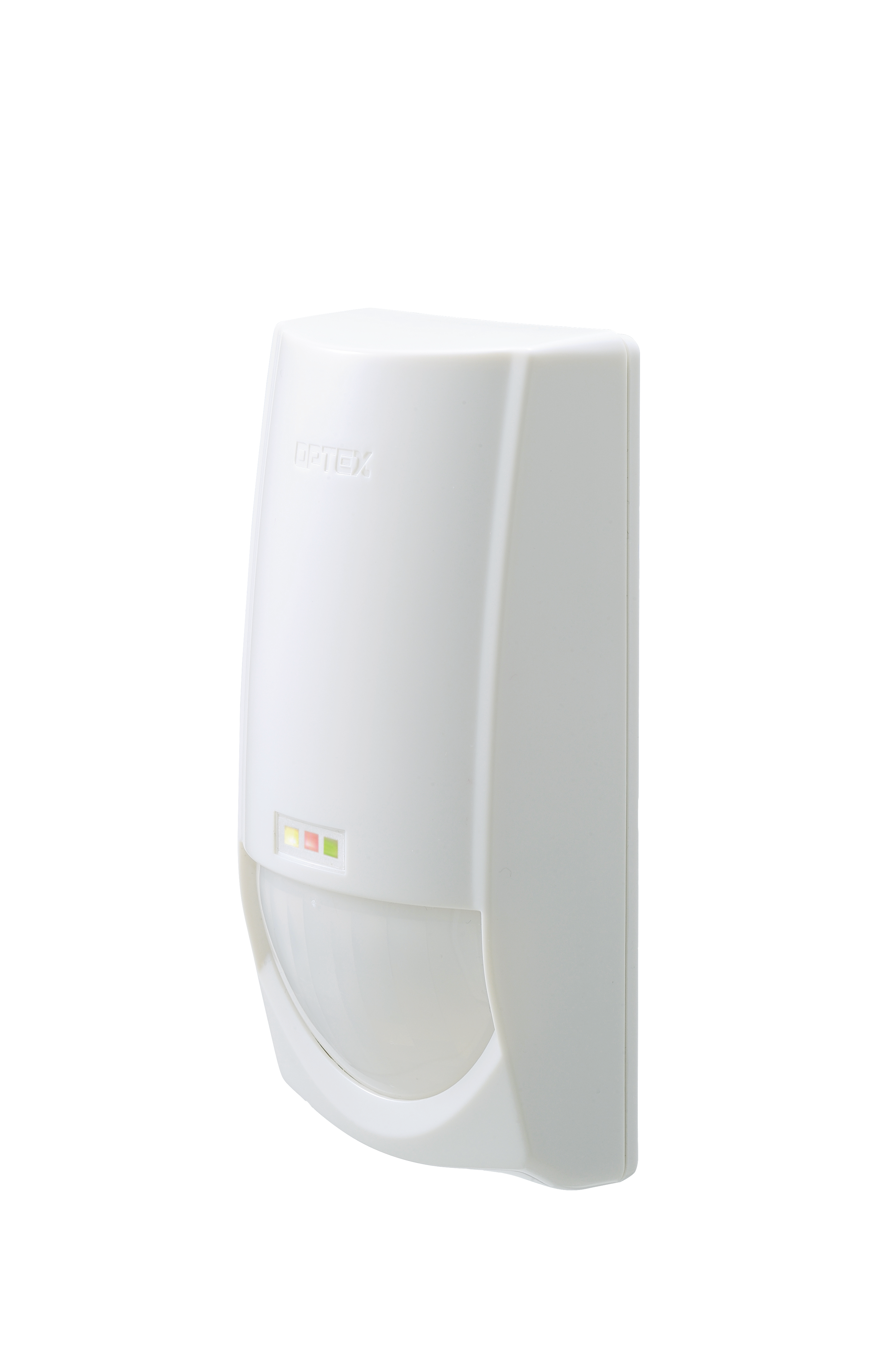

The CDX series features 82 detection dense zones. In the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection. In addition, CDX series features the newly developed digital MPU "CORE PLATFORM" for reliable and accurate performance.
The CDX series uses AIR technology to detect masking. To realize a stable performance, the CDX series differentiate between true masking and other masking caused by environmental changes such as dust/dirt adhesion, temperature changes and direct light by optimizing it's sensitivity.
The CDX series features 82 detection dense zones. In the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection. In addition, CDX series features the newly developed digital MPU "CORE PLATFORM" for reliable and accurate performance.
The CDX series uses AIR technology to detect masking. To realize a stable performance, the CDX series differentiate between true masking and other masking caused by environmental changes such as dust/dirt adhesion, temperature changes and direct light by optimizing it's sensitivity.
Bekijk details
Details
CDX-AM
Passief Infrarood
15 m x 15 m 85° breed (82 zones)
9 to 18 VDC
17 mA (normaal) / 20 mA (max.) bij 12 VDC
N.C. 28 VDC 0.2A max.
N.C. 28 VDC 0.2 A max.
-10 to +50°C
95% max.
binnen
1.8 to 2.4 m
150 g
140 mm x 70 mm x 52.3 mm
