How to install REDSCAN Lite

The REDSCAN Lite RLS-1010L is designed to deliver precise indoor detection, but achieving the best results starts with a correct installation. As with other REDSCAN sensors, the REDSCAN Lite requires OPTEX-certified training. This guide offers an overview of the key steps that trained installers can follow to ensure stable performance from day one.

Planning the installation

Before you mount the sensor, check the indoor environment. Look for reflective floors, glass surfaces, metal panels, or hanging items that can distort the scan. Identify HVAC vents or moving objects that may create unwanted movement. Confirm power and network points are in place, and set up a PC on the same network to access the configuration interface.

Installers must have the correct alignment tool for the job, which will be either the LAC-1 or the RLS-LAT.

Mounting the sensor

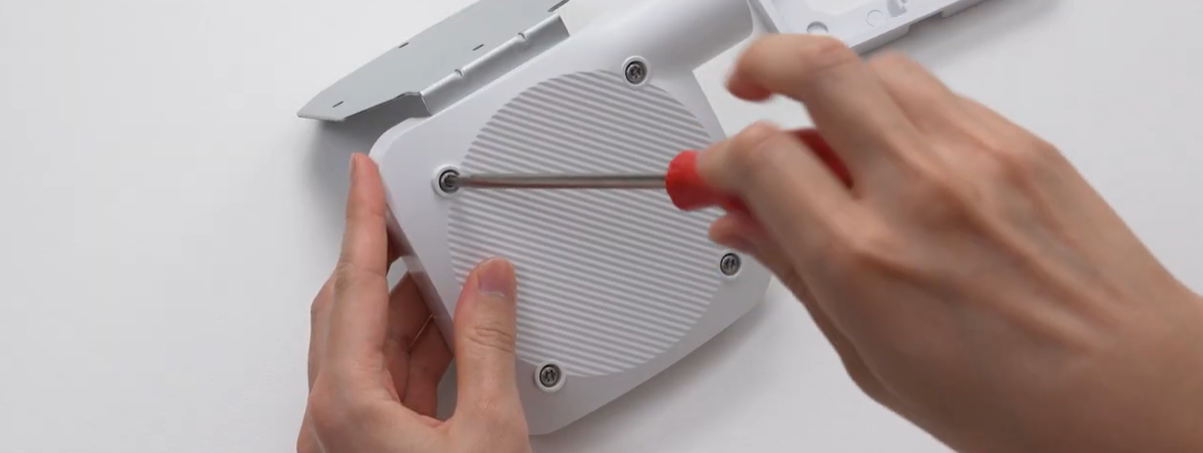

Choose a solid indoor surface for the sensor. Typical mounting heights range from 1 m to 4 m depending on the detection plane you need. Fix the mounting plate securely and keep the sensor parallel to the floor or the protected area. Clip the sensor body into place and tighten all screws to prevent vibration. A stable mount gives you a clean scan and fewer false alarms.

Power and network setup

Connect 12 to 24 VDC or PoE. Add the Ethernet cable to the network switch. Wait for the LEDs to stabilise, which confirms the device has completed its boot process.

Accessing the interface

Open a browser on your PC, enter the sensor’s default IP address, and log in. Update the IP to match the site network plan before moving on to the detection setup. This gives the monitoring system a consistent connection.

Selecting the detection mode

Choose Horizontal mode when you need a virtual wall. Use Vertical mode for area coverage or asset protection. Save your choice before making any adjustments to the zone.

Shaping the detection Area

Use the live scan view to position the detection field. Adjust the bracket angle until the scan lines match the indoor layout. Apply masking to block walkways, doors, or equipment zones that should not trigger alarms. Keep the detection field focused on the exact area you want monitored.

Fine tuning sensitivity and rules

Set the sensitivity level to match the environment. Lower sensitivity works better in tight or busy rooms. Configure alarms for intrusion or object movement. Map events to the correct relay outputs or IP notifications for the system you are integrating with.

Testing the installation

Walk through the detection zone while watching the live scan. Confirm the sensor tracks your movement cleanly with no dead spots. Make angle or masking changes where needed. Repeat the walk test until the coverage matches the intended design.

Before closing the REDSCAN unit, push the automatic area check button, this will complete an automatic area adjustment.

Final steps

Tighten the housing, store a backup of the configuration, and confirm events reach the VMS, panel, or monitoring software. Record the mounting height, angle, and network details for future service visits.
