Tech tip - How to set up detection range and down zone for FlipX Advanced sensors
29 September 2023
: FlipX Advanced is the Grade-3 indoor sensors series with antimasking, selectable wide and narrow detection and flexible settings for increased precision and reliability. In this tech tip our team provides an easy guide to key settings and adjustable features in this sensor.
Part of the FlipX Series, the Grade-3 FlipX Advanced indoor sensors with antimasking and advanced features allowing them to protect a wide range of applications, including high-security and high-risk sites. Our tech team shares tips to configure the different settings and adapt to different site requirements.
Narrow Mode Configuration

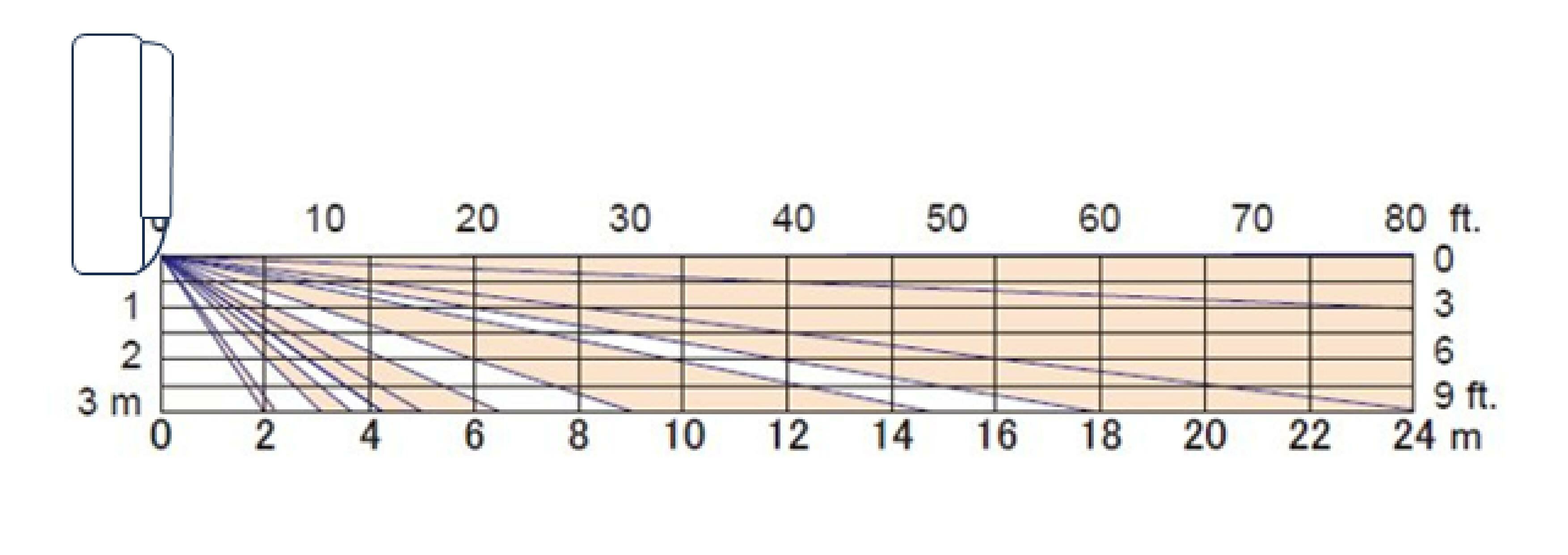

Simply by flipping the lens the detection area can change from wide detection to narrow detection. When the lens is installed in narrow mode, the detector will auto detect the lens and change the detection area to create a curtain-style detection with a fixed range of 24m (non-adjustable). In the dual-technology model (FLX-A-DT and FLX-A-DAM) changing to narrow mode will automatically disable microware sensitivity.
