MIRAGE T

MIRAGE T is a recessed mount EN-16005 approved safety and activation sensor for automatic sliding doors based on active infrared technology. The full flat design makes it blend into the environment.

This sensor is the optimal choice for locations that require an aesthetic installation, like entrances to office buildings, airports, historical buildings and museums. It can be adjusted for narrow installation sites like yachts and also for dust-proof measures as clean rooms, hospitals and other areas where hygiene is of concern.

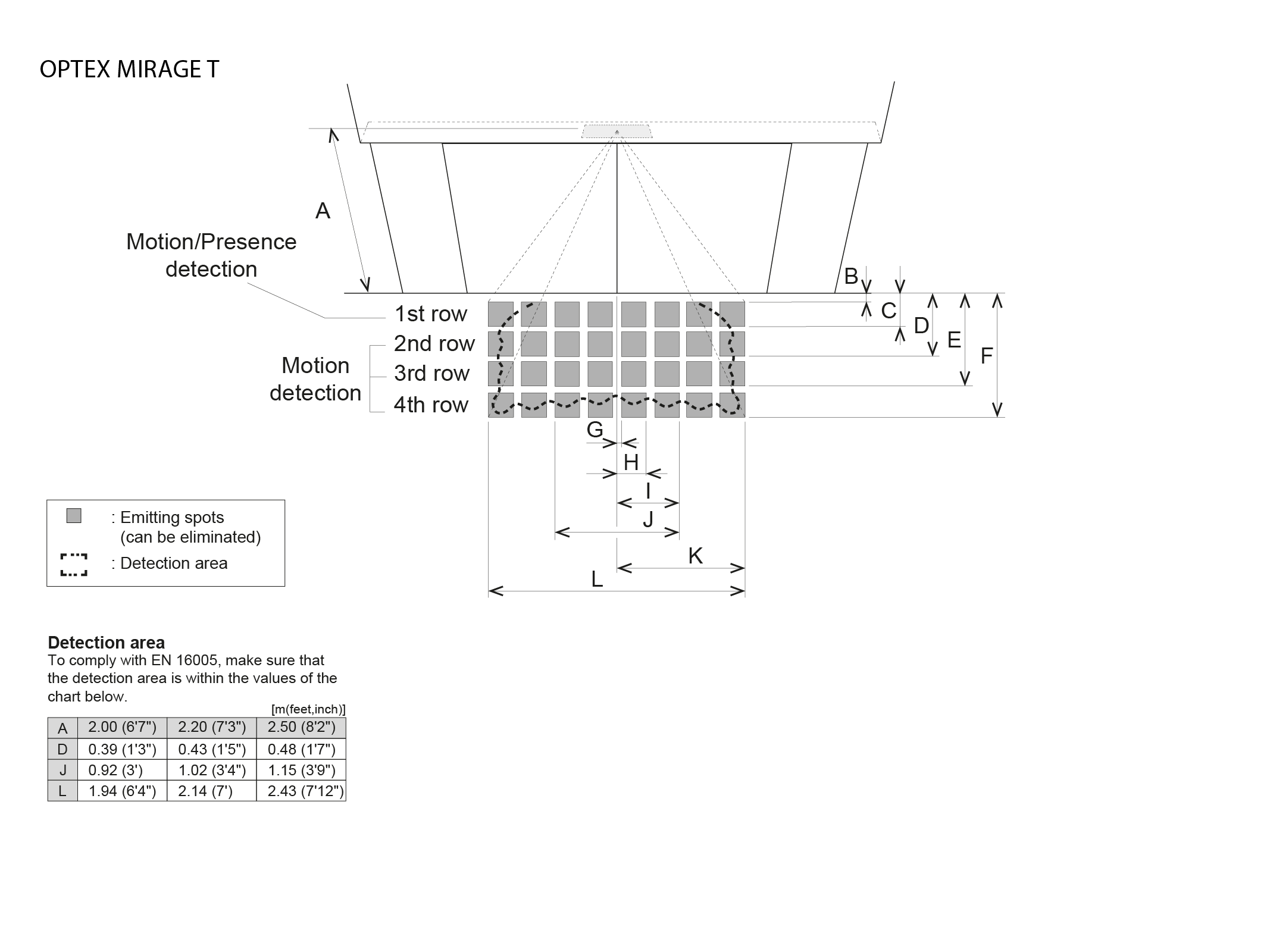

Wide to narrow detection

The sensor has a test input and is EN-16005 and DIN 18650 compliant and applicable as a side screen safety sensor. With flexible area adjustment and individual spot elimination this sensor offers detection for wide to extra narrow thresholds.

Design

The ultra flat design makes MIRAGE T a perfect solution for spaces where aesthetics and hygiene are key, also the recessed mounting makes the sensor less susceptible to environmental influences such as sea salt corrosion. The solid state relay makes sure there are no clicking sounds when the sensor detects. Also, the LED is optional, to offer invisibility where needed.

Easy Installation

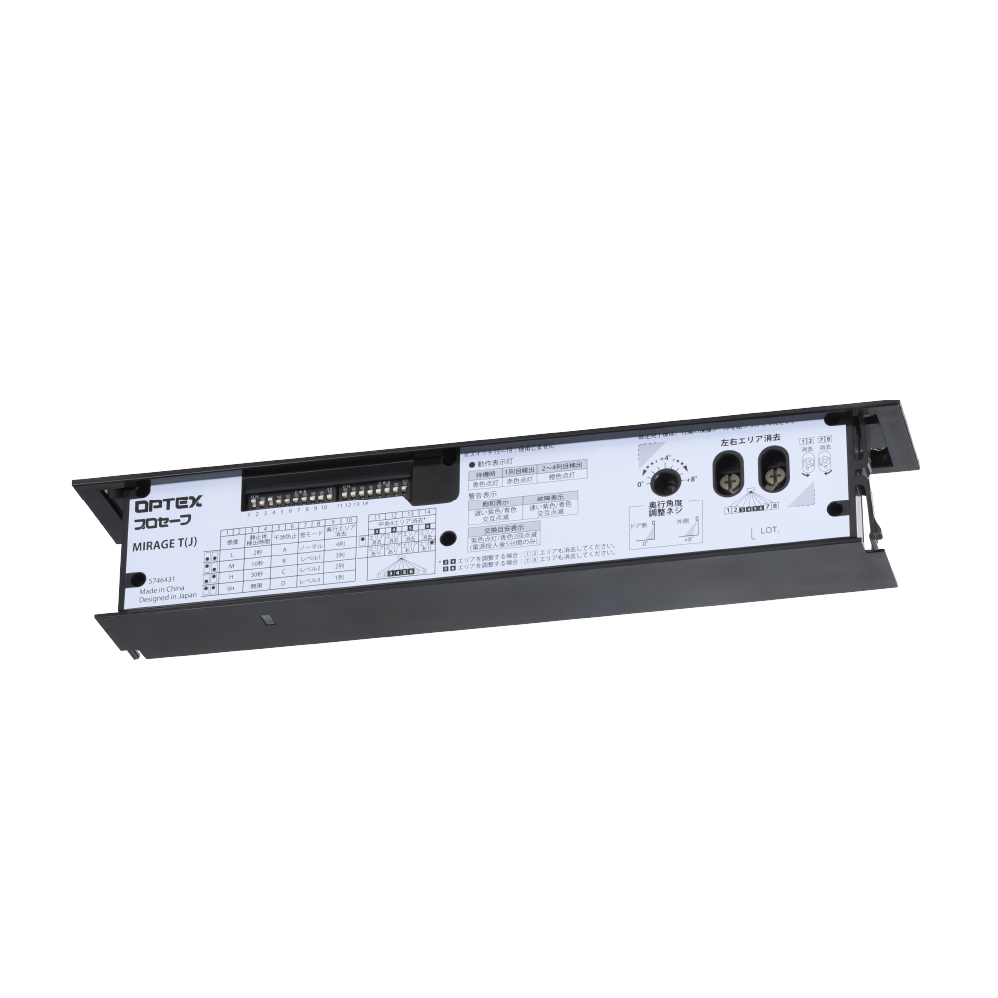

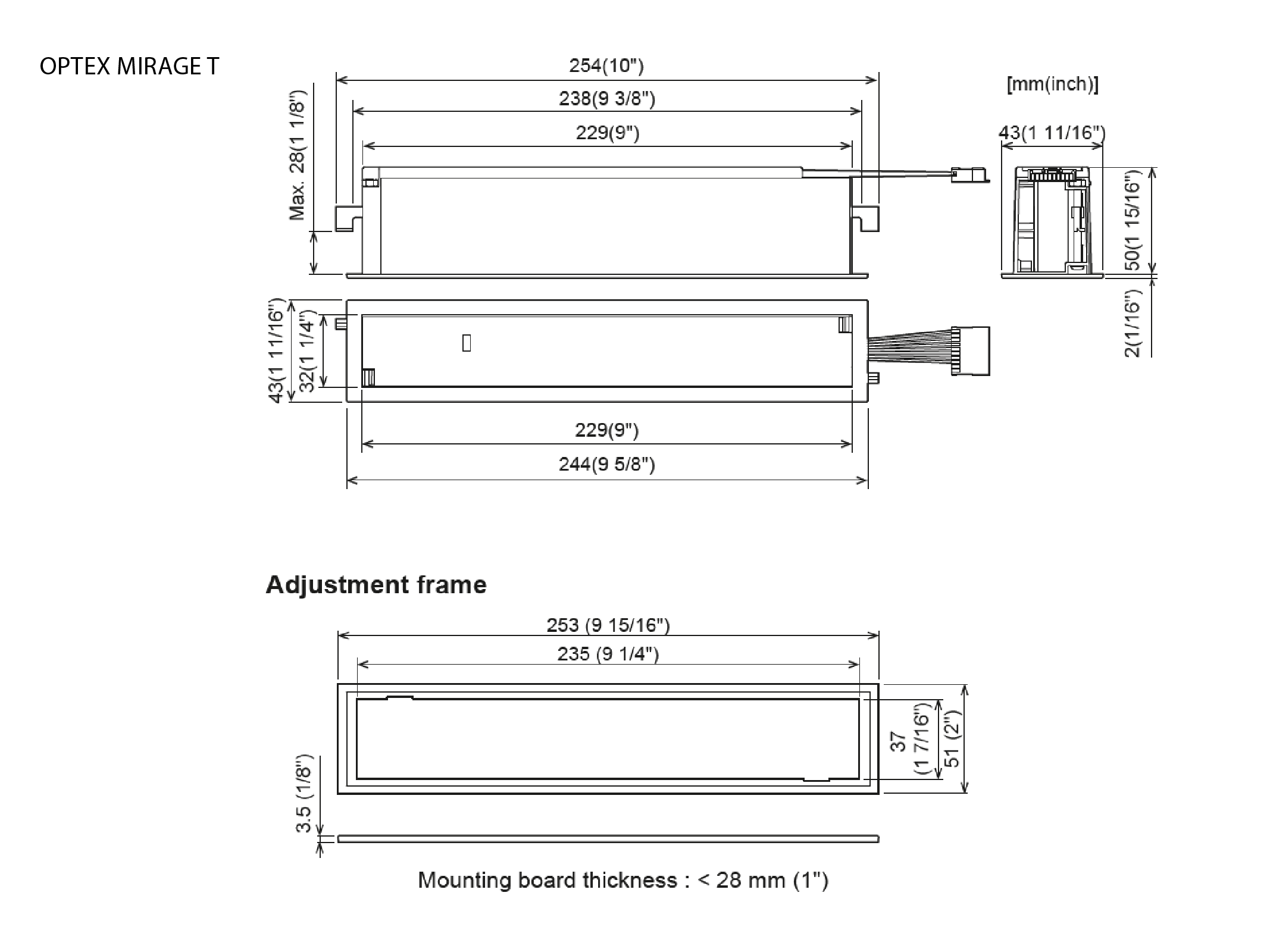

MIRAGE T can easily be mounted with its dedicated built-in bracket and the set-up is quick with dip-switches. It has the same dimensions as current MIRAGE sensor for easy replacement.
