Remote Controls
OPTEX offers a variety of remote controls to provide high quality solutions for on demand opening of automatic doors, gates and barriers.
Affordable, reliable, and easy to use, the T20 and T60 remote control systems control garage doors, elevators, conveyors, and more. Multiple transmitters and receivers can work together, letting several users manage a central entrance or multiple doors with one device. With options like displays, stop buttons, and PC programmability, these robust systems offer a 200-meter range and simple plug-and-play installation. All products work seamlessly with the TX-460 push button and RX-460 pluggable receiver.
Filters
Filters

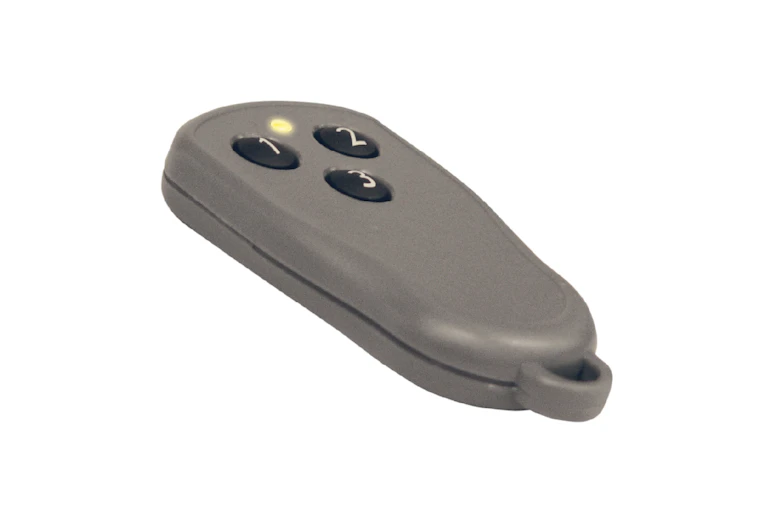

Pocketsize remote control model, easy to use.
- 1-3 buttons
- For gates and barriers
- IP-65 rating
- 50 grams
- Operating temperature -20 °C to +55 °C
- 433MHz
- Dimensions: 39 x 71 x 13 mm

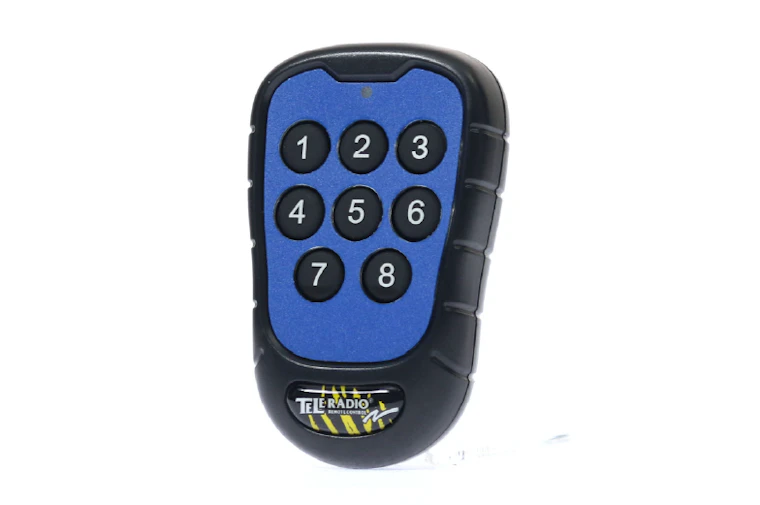

Smaller sized remote control
- Handheld or clip
- 1, 3, 6, 8 buttons
- 433 MHz 1 channel
- IP67 rating
- Weight 80 gr
- Operating Temperature -20°C to +55°C
- Dimensions: 52 x 83 x 17 mm
Medium sized remote control
- Handheld or clip
- 1- 8 buttons
- 433 MHz 1 channel
- IP65 rating
- Weight 120 gr
- Operating Temperature -20°C to +55°C
- Dimensions: 66 x 113 x 35 mm
Larger sized remote control model, easy to use.
- 15 buttons
- For doors, gates and barriers
- Optional display
- IP-65 rating
- 155 grams
- Operating temperature -20 °C to +55 °C
- 433MHz
- Dimensions: 62 x 143 x 28 mm
- 2 function relays
- 433 MHz 1 channels
- Dimensions: ~54 x 96 x 37 mm
- Operating Temperature: -20℃ to +55℃
- IP65
- DIN configuration optional
- 3 function relays
- 433 MHz, 1 channel
- Dimensions: 133 x 120 x 45 mm
- Operating Temperature: -20℃ to +55℃
- IP65
- DIN configuration optional
- 1
The T20 and T60 transmitters are available in four versions—keychain, mini, midi, and maxi—ranging from compact one-button models to larger units with up to 15 buttons. Built in sturdy IP65 enclosures, they provide reliable wireless control for gates, barriers, and other automated systems. Each transmitter can handle 1–8 functions and is programmed with a unique individual code, with the option to add a group code for shared access. Clips or rings make them easy to carry, and special variants, including truck models, are available on request. The larger 15-button transmitters are ideal for environments with numerous controllable objects, such as warehouses.
The receivers come in multiple sizes with two, three, five, or eight relays and are built to withstand outdoor conditions. They support learning individual or group codes for at least ten transmitter groups and are available in IP65 housings, DIN-rail formats, or pluggable modules, with custom versions available for integration.
