Product Details

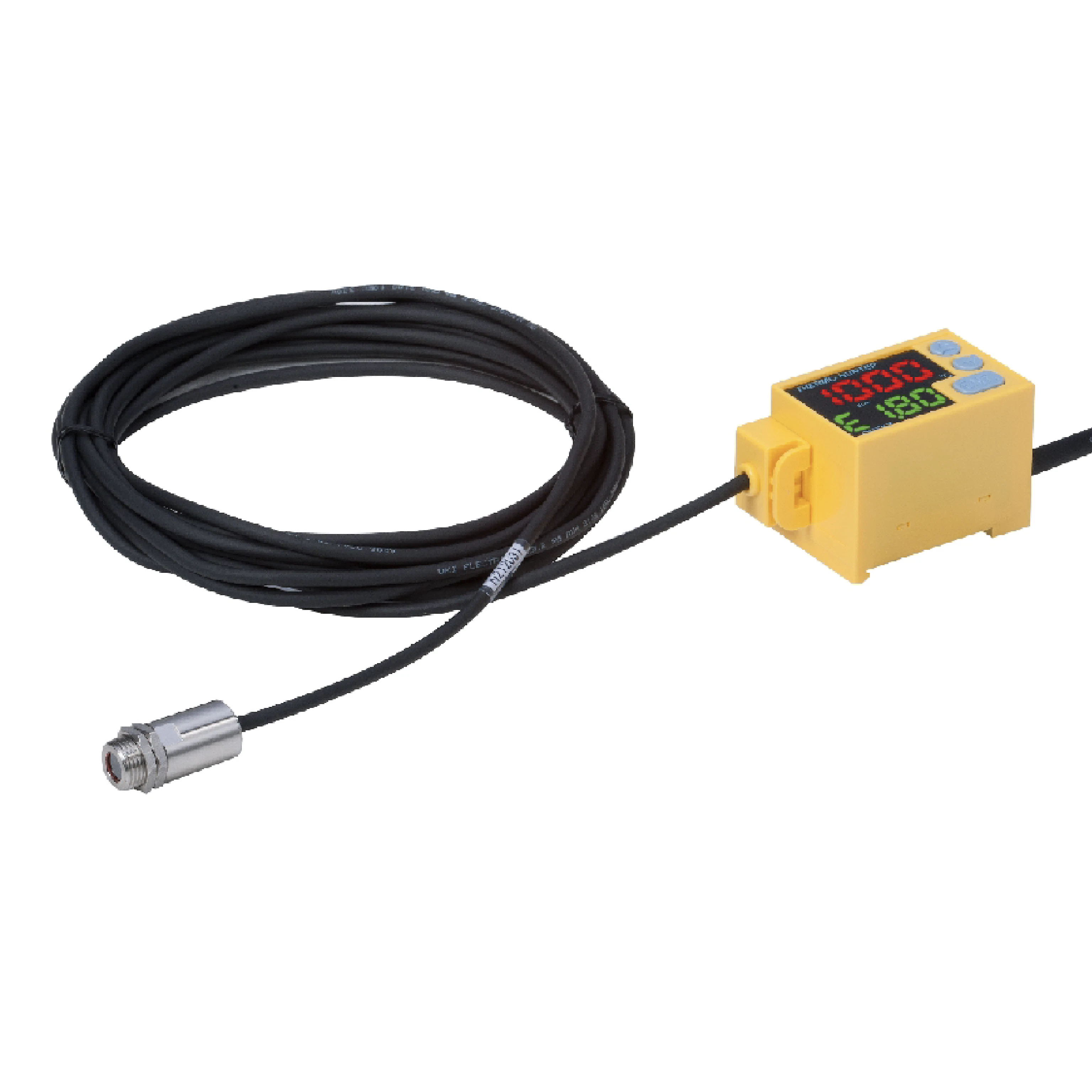

A Non-contact thermometer with a compact and rugged sensor head.
Gives high performance in harsh environment
CS series: -40 to 500°C
CS-HT series: 0 to 1000°C
- Smallest sensor head worldwide, installable in a limited space
- Usable up to 180°C ambient temperature without cooling
- Highest waterproof rating IP69K
- Unique water repellent coating, easy maintenance
- 6 kinds of optical specification
- Large digital display with 7-segment LED
- Easy temperature adjustment -2 points teaching function
The optical resolution value stated below are at minimum 90% energy.
The size of the measuring object should be sufficiently larger than the spot size.
CF lens requires the target object to be approx. 1.5 times larger than the spot size
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-World’s-smallest-class-sensor-head-ideal-for-installation-in-limited-space.jpg)
FEATURES
World’s smallest-class sensor head ideal for installation in limited space.
The ultra-compact head measures only M12 (ø14) × 30 mm. This allows the thermometer to be mounted to a wide variety of equipment in various manufacturing lines.
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/Cs-Series-Compact-body-offering-both-visibility-and-operability.png)
Compact body offering both visibility and operability
The 7-segment, large digital display is incredibly easy to read.
In addition, the large, easy-to-understand buttons make operation easier even when mounted to equipment.
Heat-resistant sensor head capable of handling up to 180°C (356°F)
The sensor head and cable are heat resistant to 180°C (356°F).
This eliminates the need for water cooling even in high-temperature
environments. (Low- and medium-temperature models are
heat resistant to 100°C (212°F).)
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Industry’s-highest-level-of-waterproof-performance.jpg)
Industry’s highest level of waterproof performance
In harsh manufacturing lines, water and dust can cause sensors to fail, so environmental resistance is a must. The CS series offers IP69K protection as stipulated by German standard DIN40050-9. This allows for problem-free use even in high-pressure sterilization washing.
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-2-point-teaching-function-for-simple-temperature-adjustment.png)
2-point teaching function for simple temperature adjustment
The CS series is now equipped with a 2-point teaching function. Setting the upper and lower limits for a measurement target makes adjusting in order to display the desired value easy.
Various measurement modes
* Bank function; Settings can be saved independently
for banks 1 through 4.
* Output scaling function; The temperature range of
the analog output (4 to 20 mA) can be set as desired.
* Trigger function; Output control can be set according
to trigger (synchronization) input.
[External trigger / Wave trigger / MAX, MIN, P-P, SAMPLE hold]
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Laser-marker-for-easy-alignment.jpg)
Laser marker for easy alignment (optional)
A laser marker makes precise positioning easy even with a small head, which is difficult with a conventional setup. Designed to be the same shape as the sensor head, laser markers can be easily used during alignment.
APPLICATIONS
![CS Series Applications](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_1200xAUTO_fit_center-center_none/CS-Series-Applications.jpg)
SPECIFICATIONS / FIELD OF VIEW
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Type-key.png)
Type Key
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Field-of-View.png)
Field of view

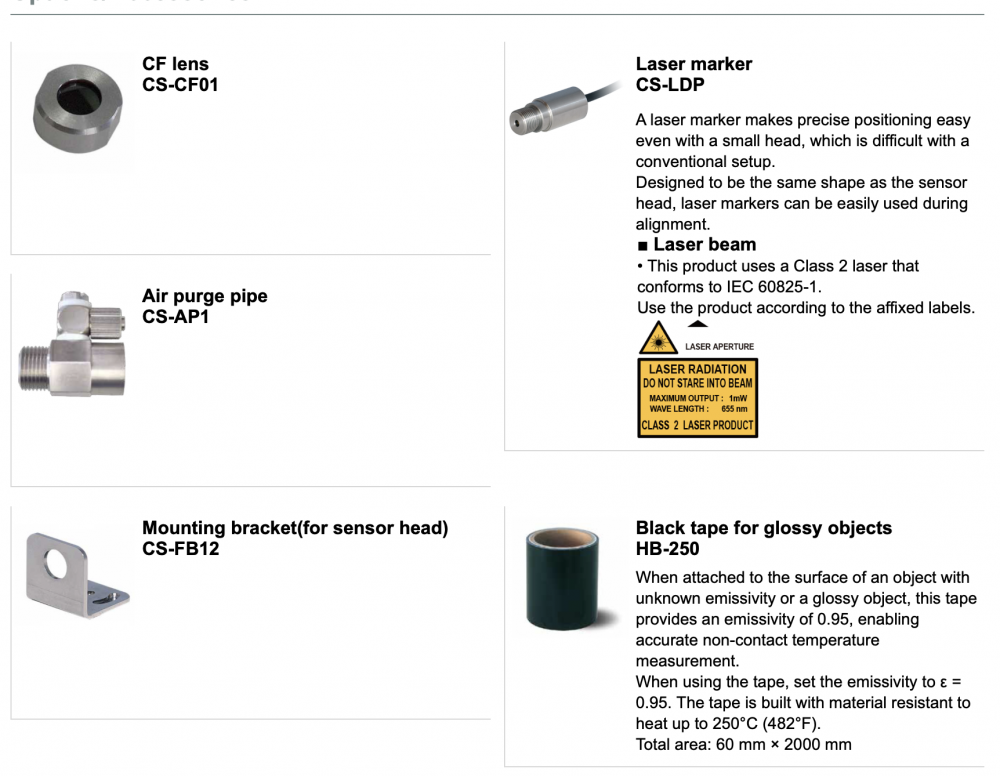

OPTIONS
![CS Series Options](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_1200xAUTO_fit_center-center_none/CS-Series-Options.png)
DIMENSIONS
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Amplifier.png)
Amplifier
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Sensor-Head.png)
Sensor Head
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-CF-Lens-Laser-Marker.png)
CF Lens / Laser marker
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Air-purge-pipe-Mounting-Bracket.png)
Air Purge Pipe / Mounting Bracket
![](https://s3-eu-west-1.amazonaws.com/optex-europe/sensor-images/Temperature-Detection/_750xAUTO_fit_center-center_none/CS-Series-Wiring-Diagram.jpg)
Wiring Diagram
