OVS-02GT EN barrier safety sensor
EN 12453 Type D compliant vehicle detection sensor for automated gates and barriers, with additional safety detection for automated barriers.
- EN-12453 compliant D-device for barrier safety
- Above-ground installation
- Detects up to 35 km/h (22 mph)
- Range up to 8 meters (26ft)
- Detects human presence
The OPTEX OVS-02GT EN is the latest addition to the OVS-02 vehicle detection series, combining proven vehicle detection performance with enhanced safety functionality for automated barriers. Featuring a dedicated Test input and a Form A solid-state relay safety output, the OVS-02GT EN is compliant with EN 12453 Type D, making it now suitable for applications where safety monitoring by a Type D device is required for automated barriers. The OVS-02GT EN provides reliable above-ground vehicle detection and acts as a virtual loop, replacing traditional inductive ground loops without the need for civil works. It delivers accurate detection of stationary and moving vehicles while maintaining reliable operation in demanding outdoor environments.
Easy above-ground installation
The OVS-02GT EN is designed for simple installation without the need for cutting into road surfaces or installing underground loops. Mounted above ground on a wall, pole, or barrier housing, it provides a practical alternative to traditional ground loop systems.
Configuration is quick and easy using the OPTEX Virtual Loop app, allowing installers to set up and adjust the sensor using a smartphone or tablet.
Excellent performance in challenging environments
Using microwave technology, the OVS-02GT EN provides stable vehicle detection while ignoring pedestrian traffic to reduce unwanted activations. The sensor is designed for indoor and outdoor use, with an IP66 and NEMA4 rating to ensure reliable performance in varying weather conditions.

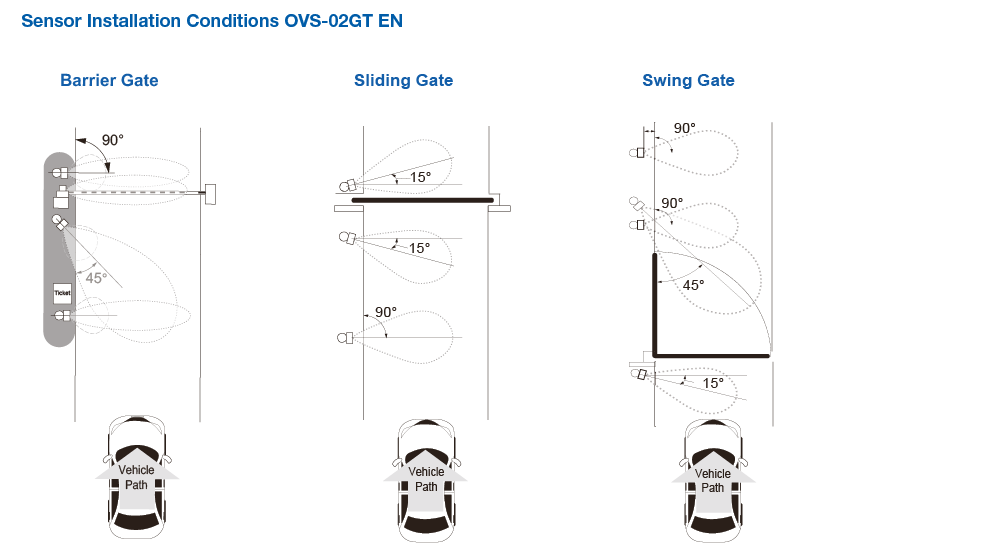

Installation Position
FAQ
Yes, the OVS-02GT vehicle sensor is suitable for automated barriers, sliding gates, and swing gates. The additional safety functionality of the OVS-02 GT EN is only applicable on automated barriers.
The sensor needs to be installed 500mm above the driving surface.
