How to correctly install and wire the FlipX Advanced Series wall bracket

30 November 2023

With its rotating lens, the FlipX sensors can cover both wide or narrow areas. The sensors offer an optional bracket which allow for two installation options, either wall or ceiling mount

The Grade 3 FlipX Advanced sensors are designed for securing higher-risk sites including commercial areas, datacentres, logistics and banks. With its rotating lens, the FlipX sensors can cover both wide or narrow areas. The sensors offer an optional bracket which allows for two installation options, either wall or ceiling mount.

The bracket accessory is EN Grade 3 Compliant and must be installed and wired correctly.

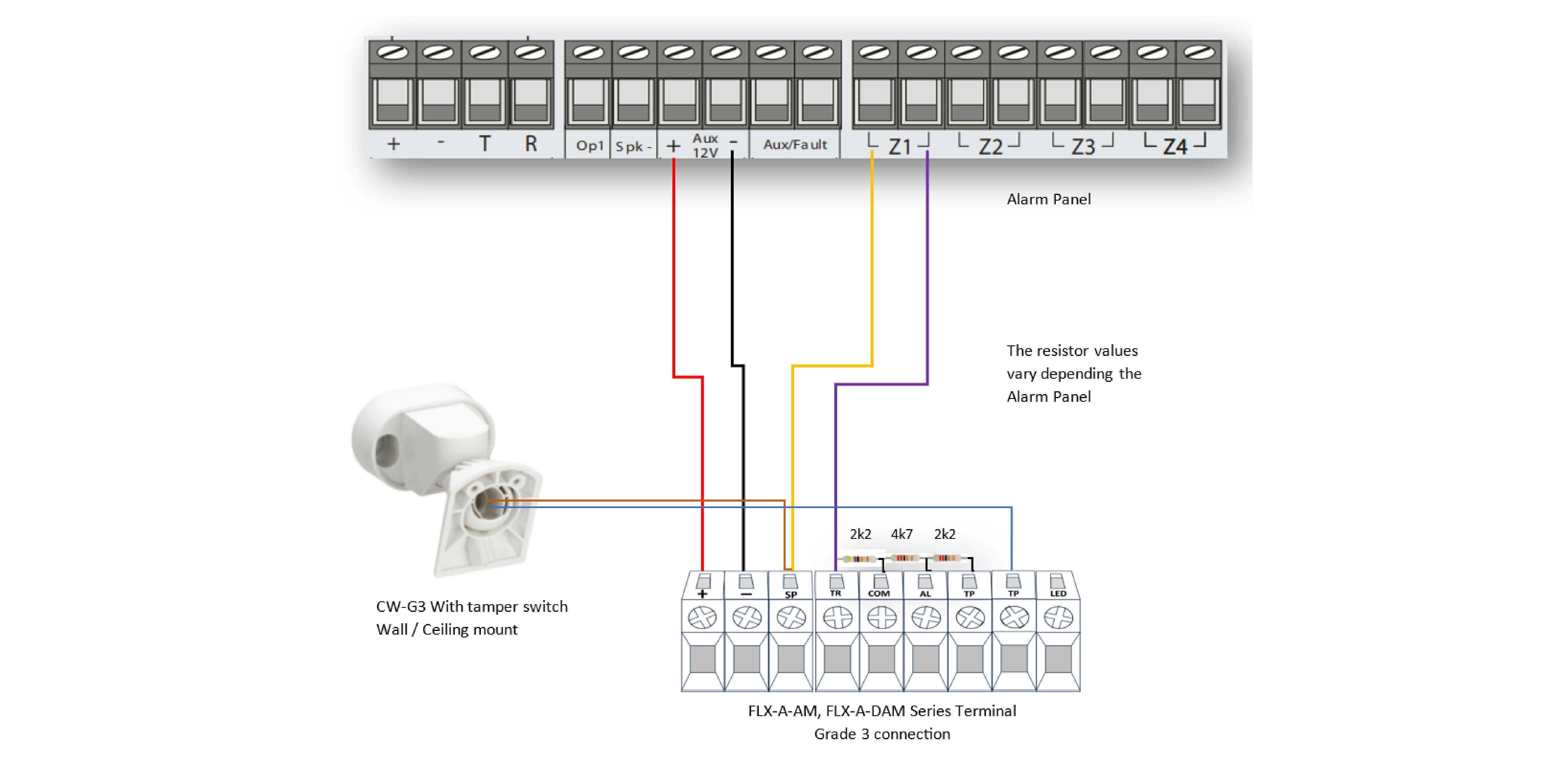

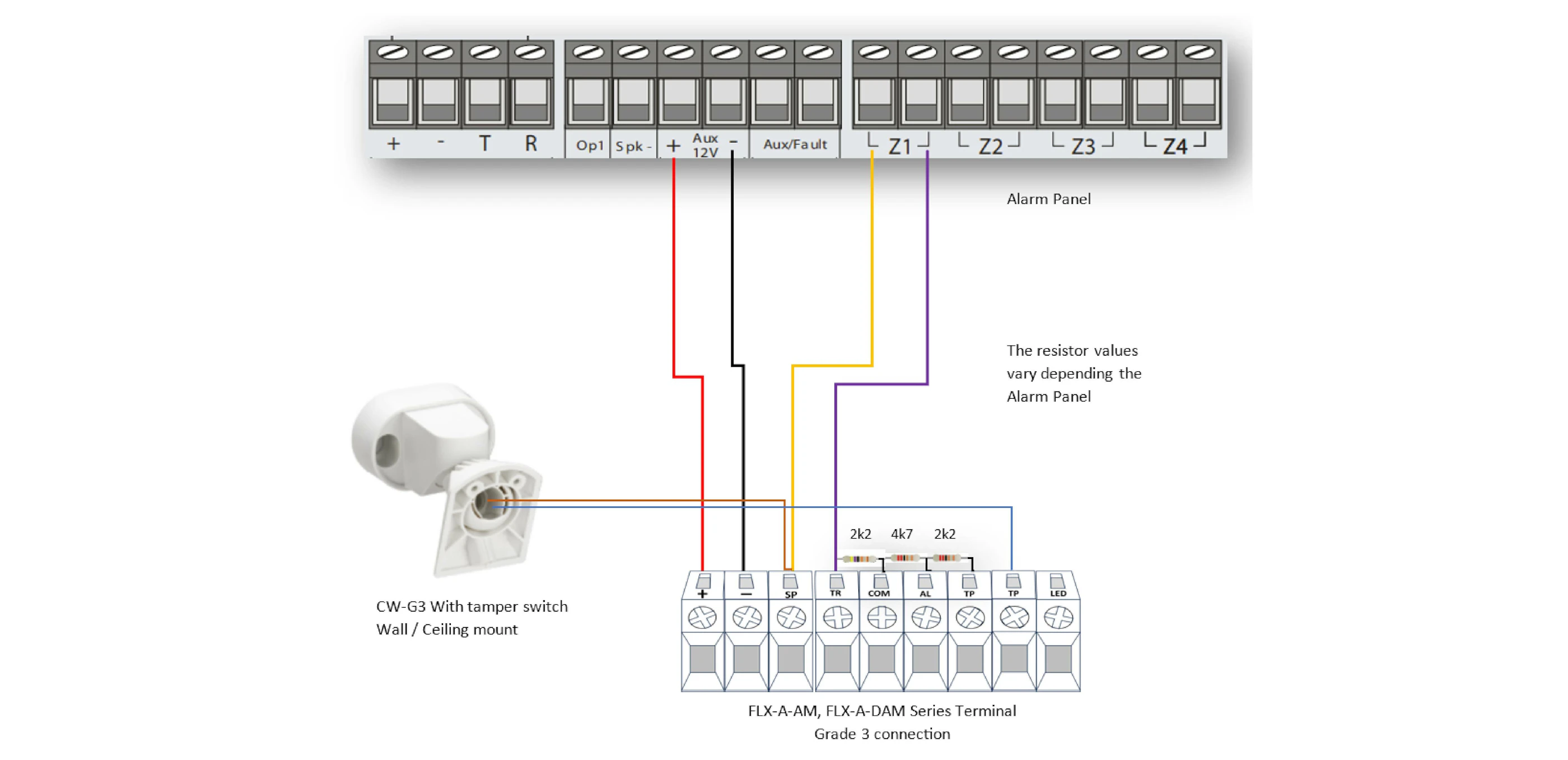

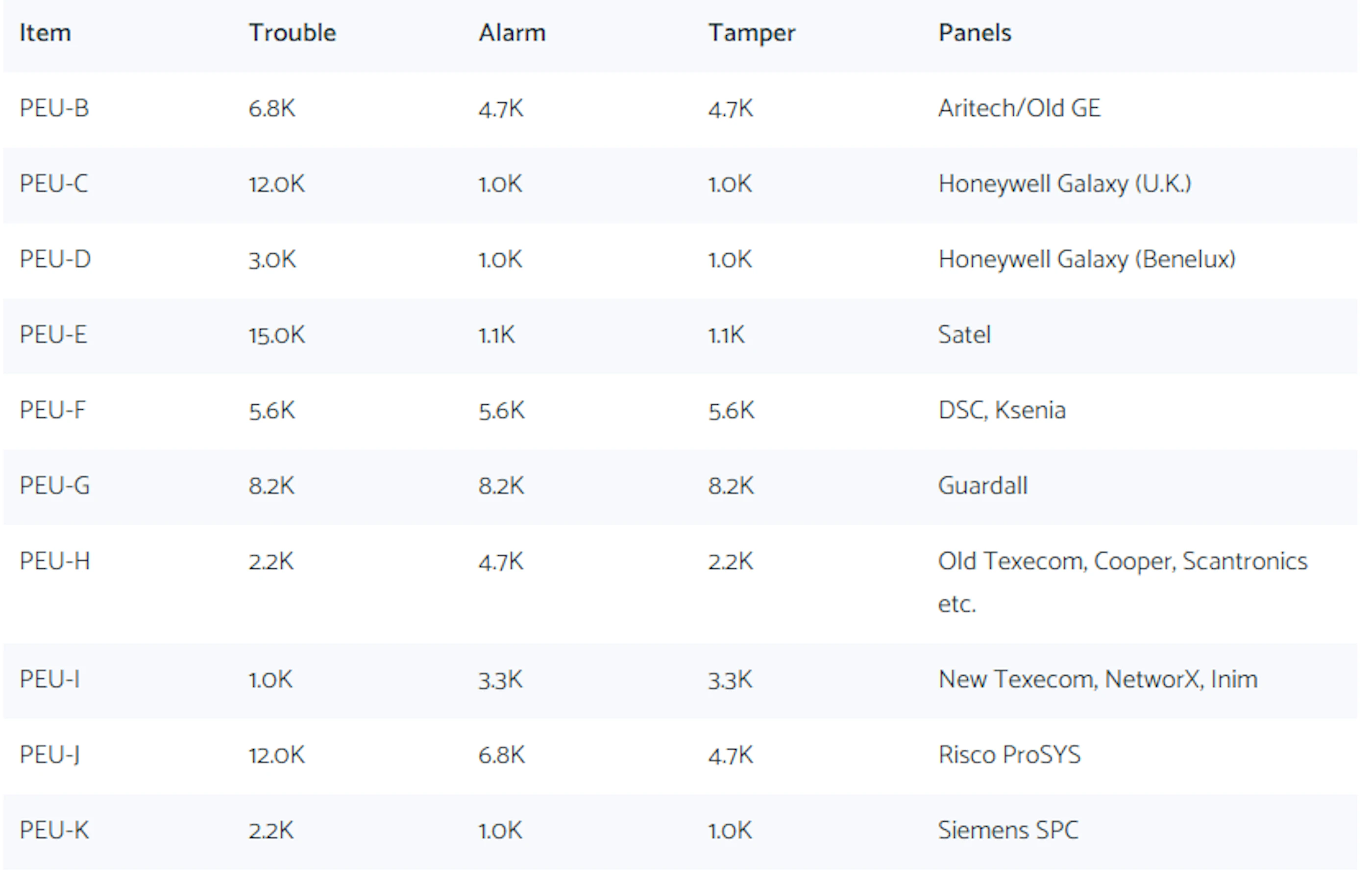

The optional ceiling or wall mount bracket, when installed the wall tamper must be connected in series with the cover tamper inside the FLX-A series detector. To simplify the connections, use the SP (spare) terminal to join the bracket tamper and the terminal from the panel as below.
