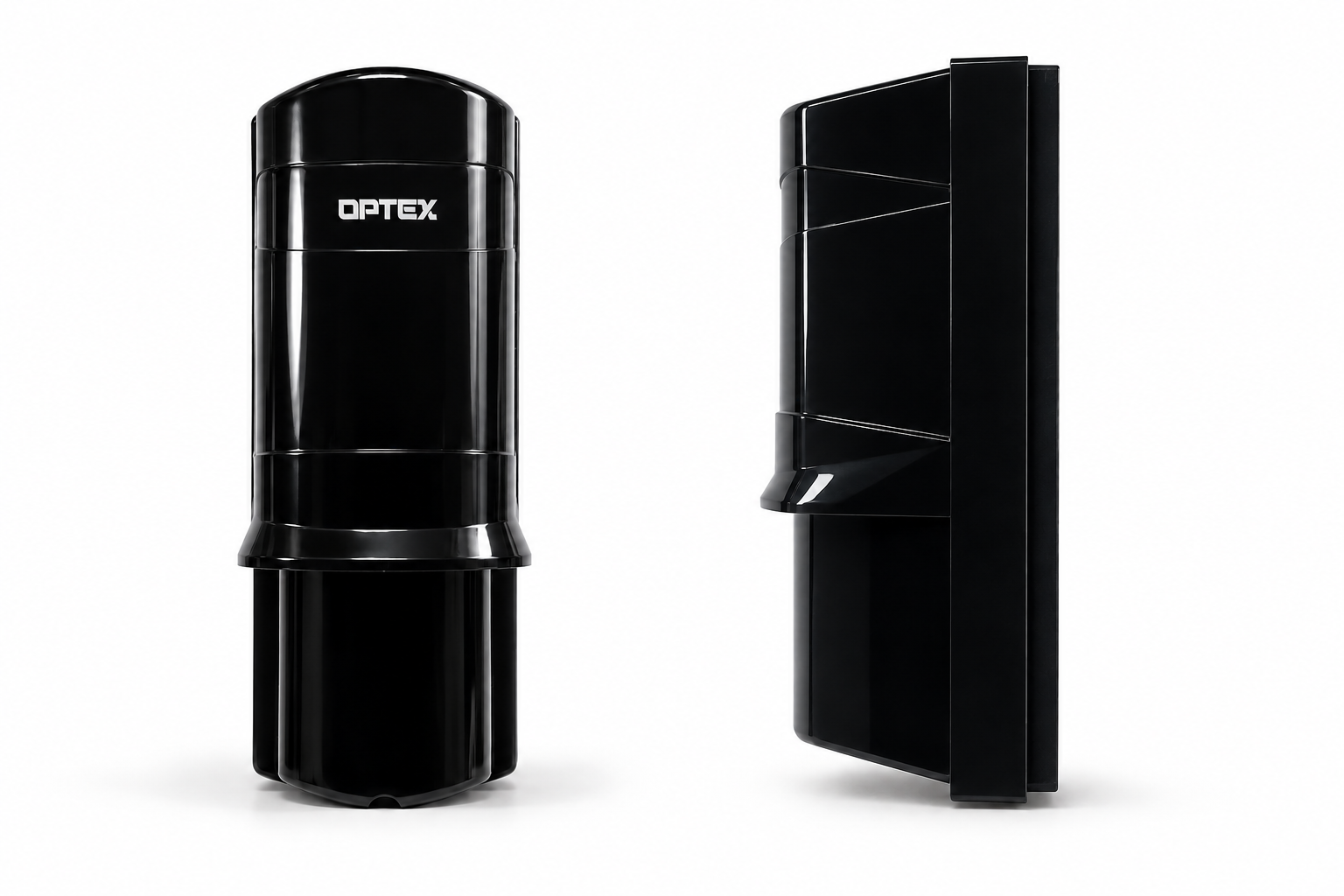

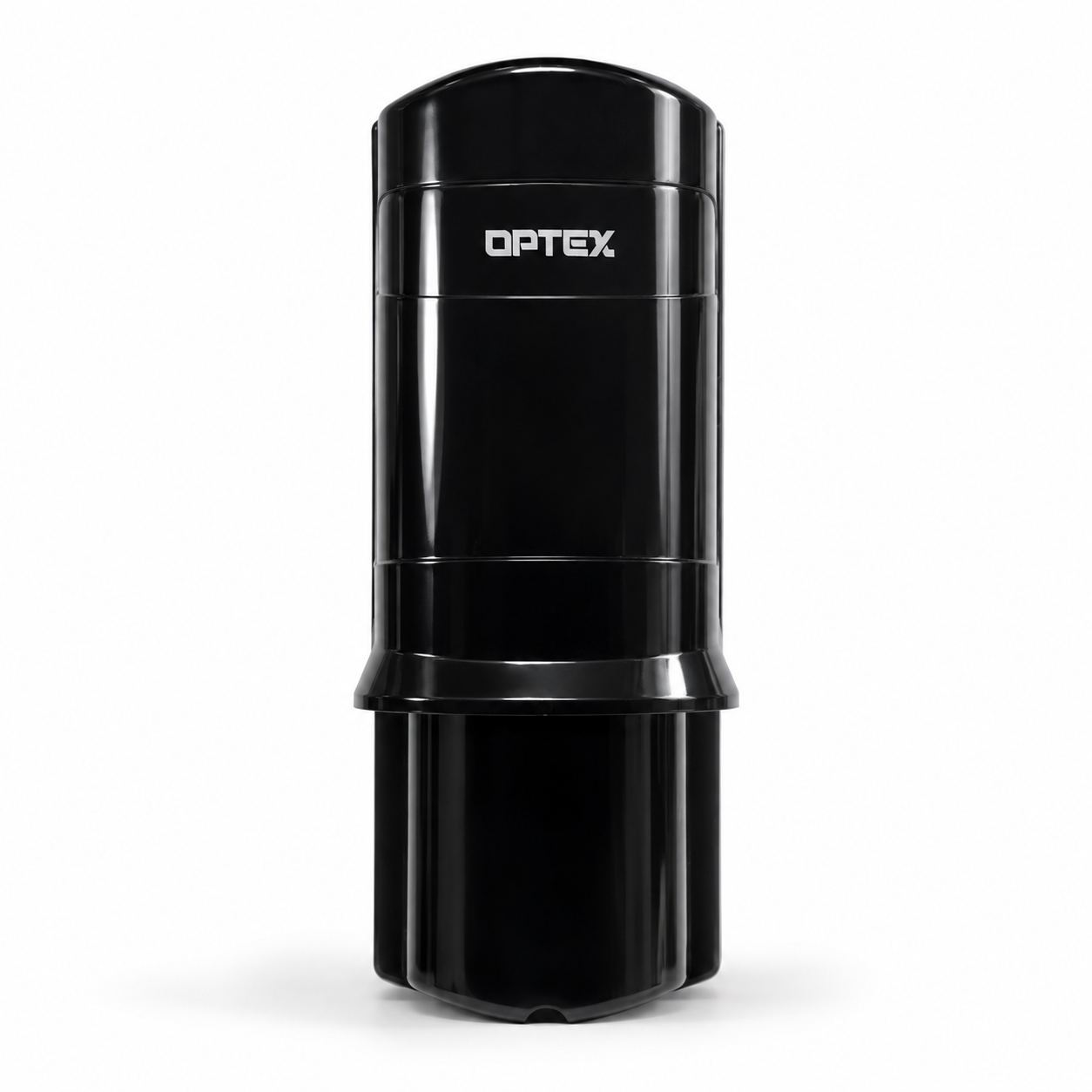

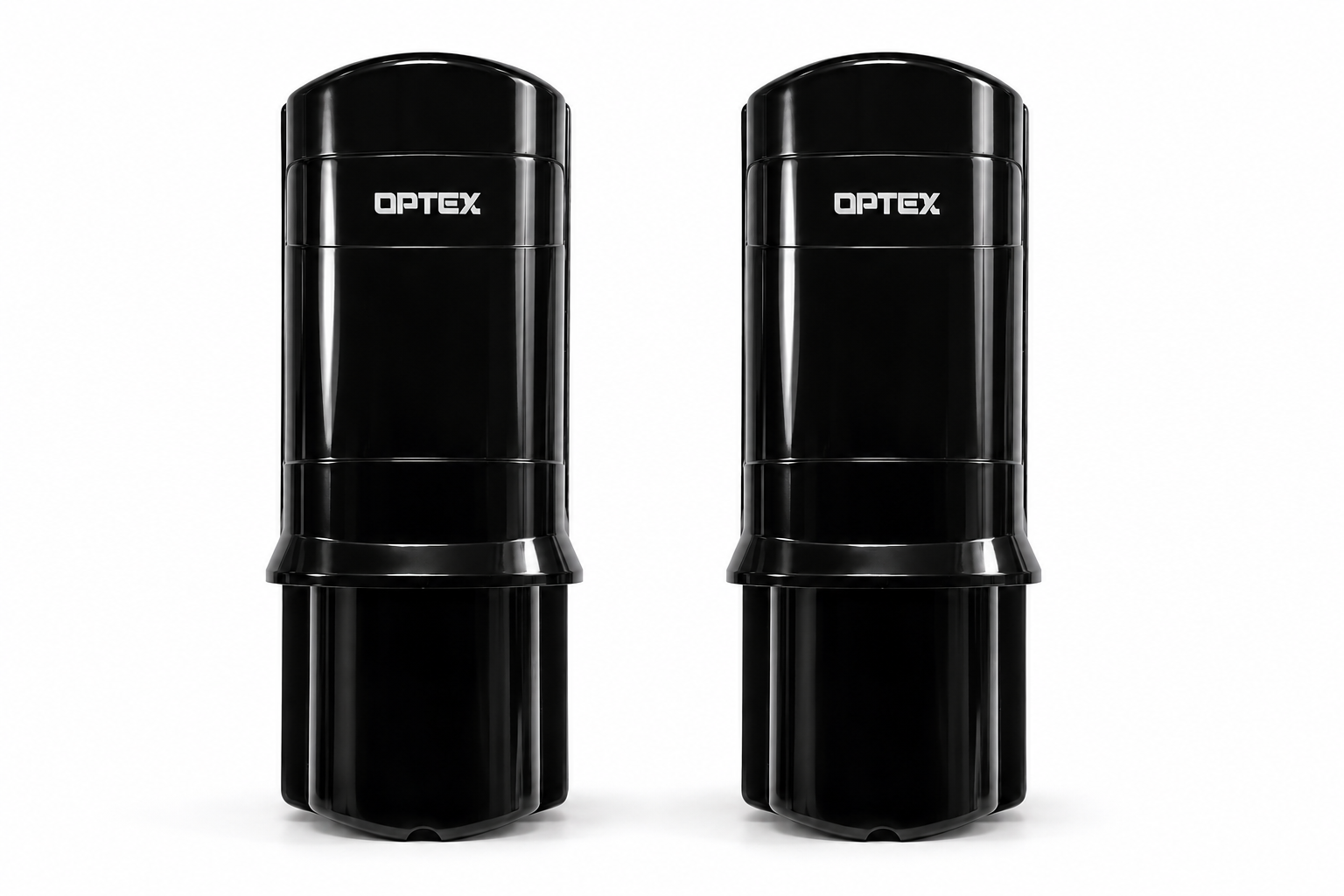

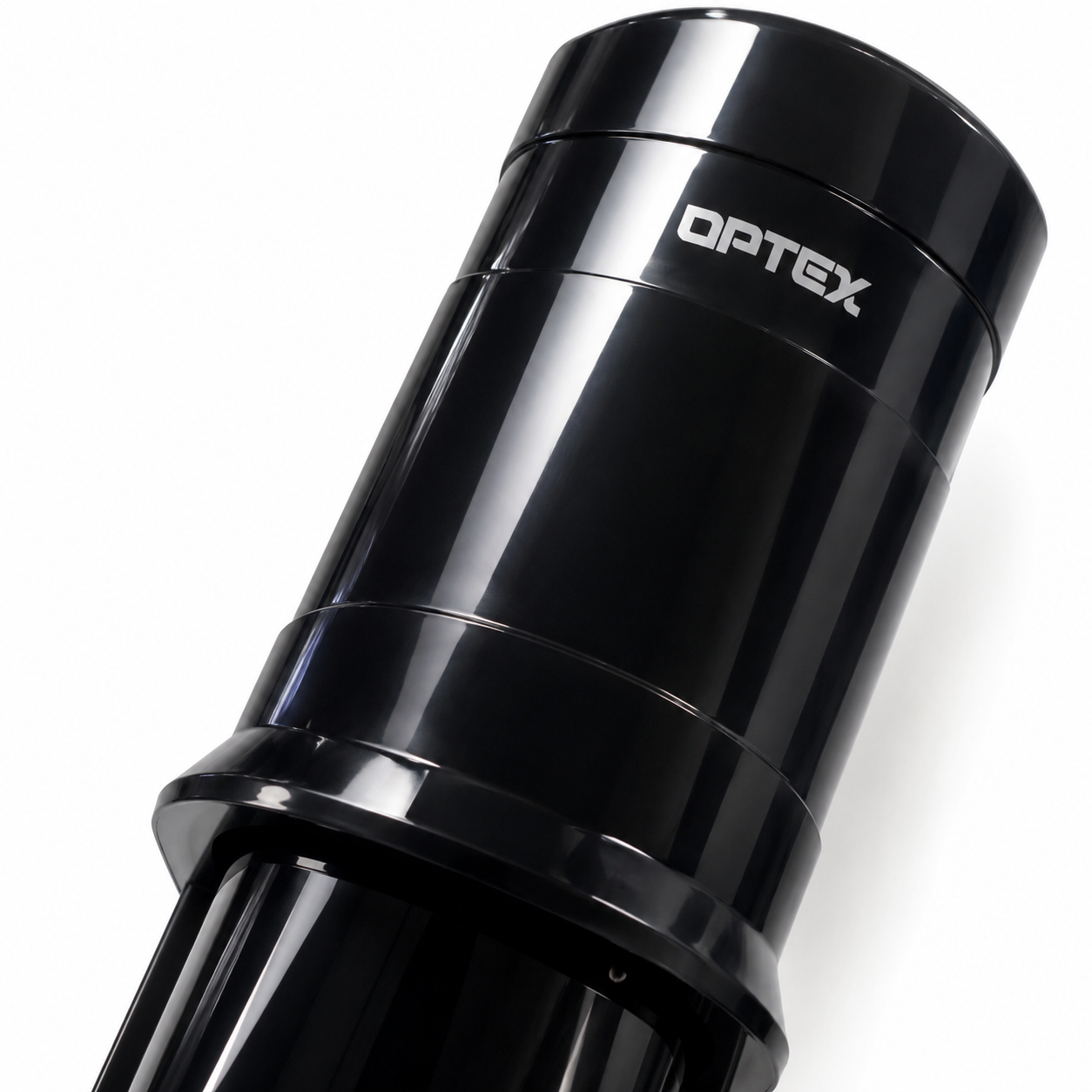

Optex Ax Tn Tf Picture

Product Details

The AX-200TN is a 60m outdoor hardwired active infrared (AIR) beam set, designed to protect driveways, open areas and small perimeters. The dual beam set can also be connected to an IP network when used in conjunction with the IP/POE module PIE-1

Flexible settings Weather resistant
The AX- beams series offers great set-up flexibility. The angle can be easily and precisely adjusted by +/- 90 degree horizontally and +/- 5 degrees vertically. The beam interruption time could be adjusted between 50, 100, 250 and 500 milliseconds to fit any operational requirements. IP65 rated, the AX-200TN housing has been designed to resist against both water and dust. The hood featured on the front cover is to prevent frost from attaching to the cover and potentially affecting the signal power. The beam is also fitted with specific relay and absorber to protect it from lightening surges.


Applications

  • Perimeter
  • Garden
  • Driveway

Key Features

  • hardwired dual beam set
  • 99% beam blocking stability
  • IP65 structure with high sealing rubber packing
  • High grade spherical lens
