CX-702RS

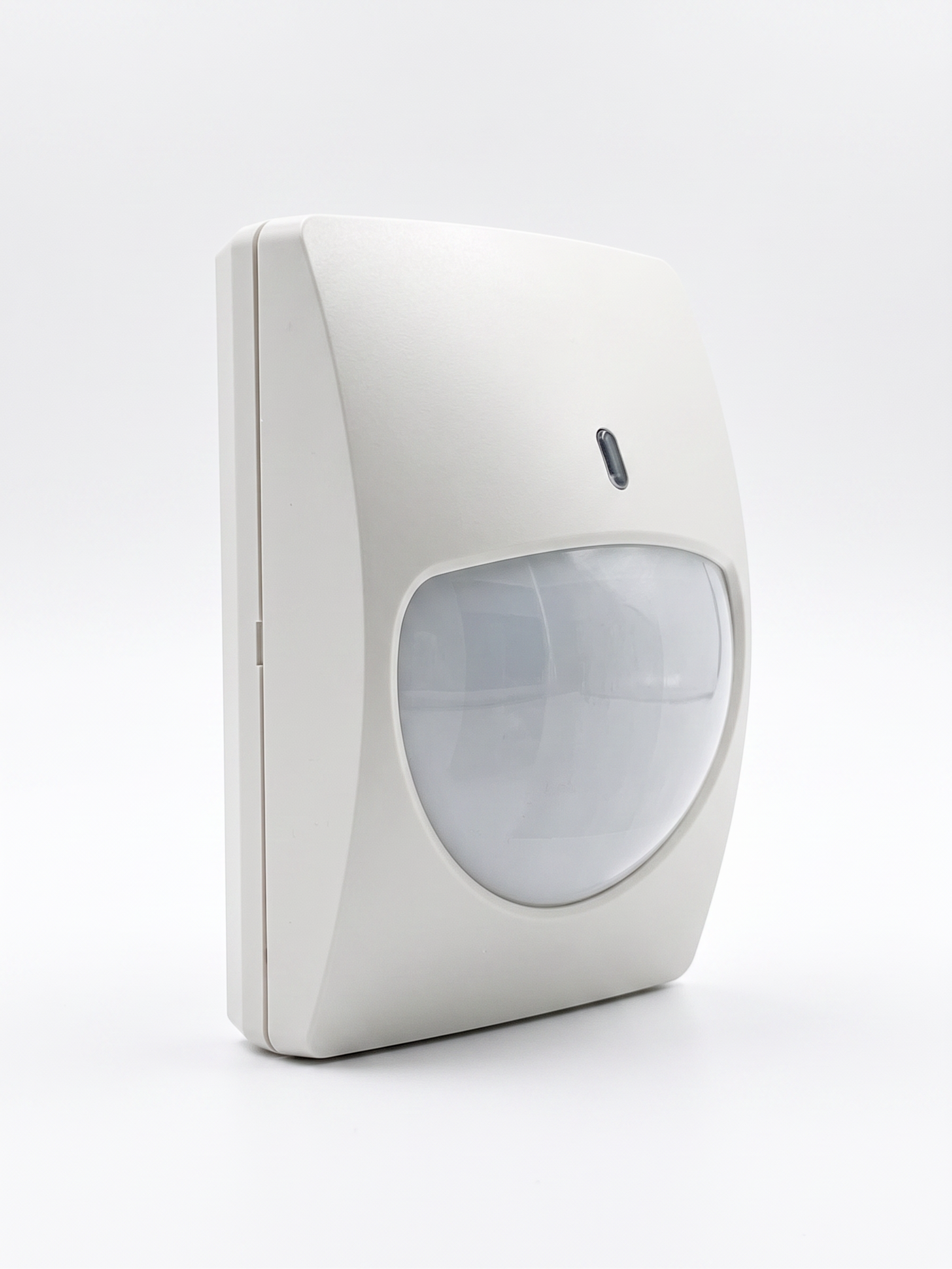

The CX-702 MK II series is equipped with a dual-purpose lens that allows you to choose between wide-angle or long-range ‘curtain’-type detection to protect long corridors or narrow areas in offices, warehouses or manufacturing sites. The CX-702's conductive double shielding makes it a very stable detector even in bright conditions. It has a double pyro-element for enhanced reliability. The CX-702RS is the battery-powered model.
Specifications
See details
Details
Model Code
CX-702RS
Detection method
Passive Infrared
Detection Coverage
WIDE : 21 m x 21 m 90° 136 zonesLONG : 45 m x 10 m 44 zones
Detectable speed
0.3 to 1.5 m/sec.
Sensitivity
1.6°C at 0.6 m/sec. at 2.4 m mounting height
Power input
9.5 to 16 VDC
Current draw
11 mA (max.) at 12 VDC
Alarm period
Approx. 2.5 sec.
Warm-up period
Approx. 60 sec.
Alarm output (R)
N.C. 28 VDC 0.2 A max.
LED indicator
Alarm condition
Operation temperature
-20°C to +50°C
Relative humidity
95% max.
Installation Method (indoor/outdoor)
Indoor
Mounting height
1.5 to 3.6 m
Weight
200 g
Dimensions
140 mm x 100 mm x 69 mm
