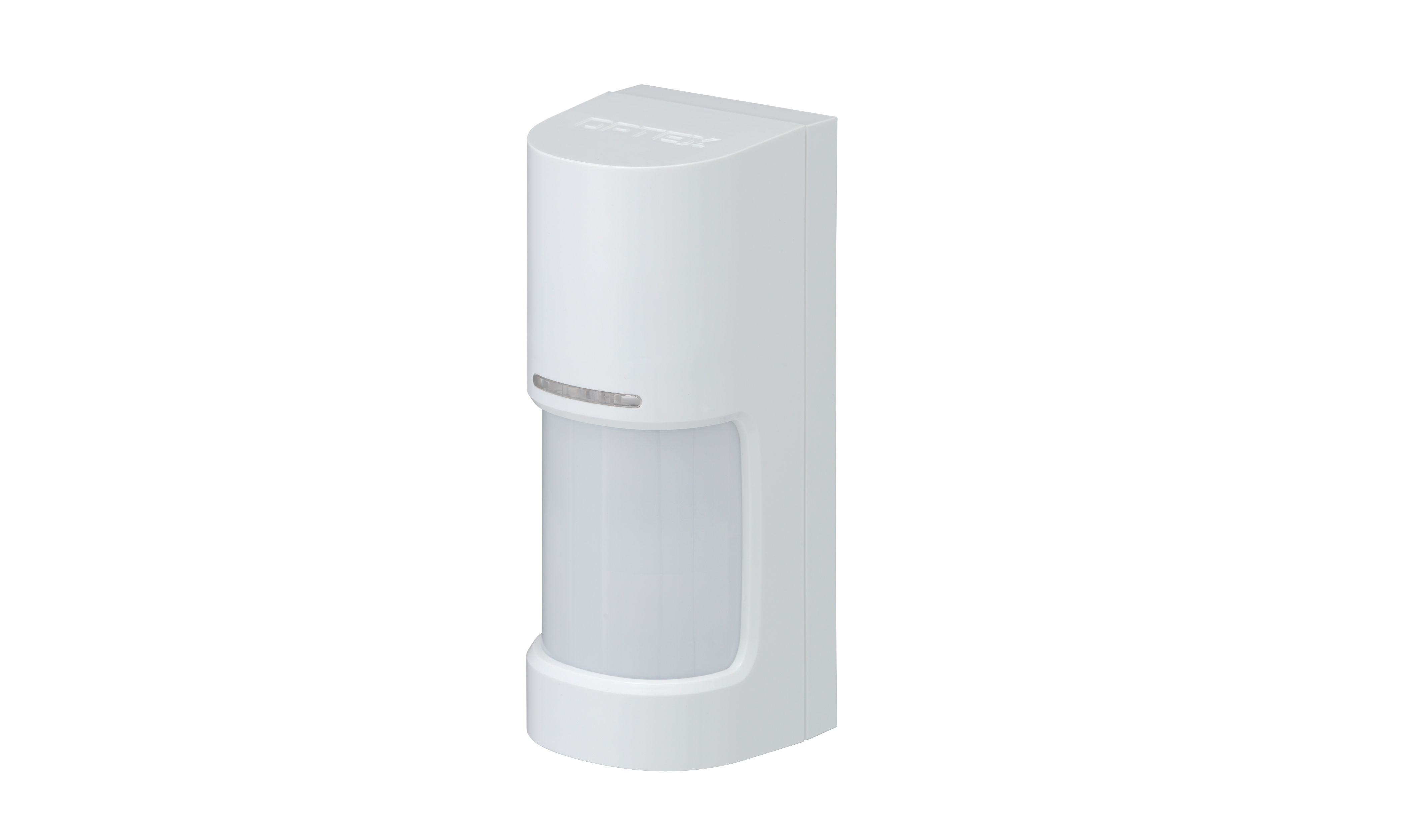

WXI AM Outdoor 180-degree PIR with antimasking
- 12m 180 degree PIR for external intrusion detection with anti-masking
- SMDA logic: digital analysis for enhanced environmental variance adaptation
- Two independent detection areas left and right - ideal for CCTV camera presets
- Selectable pulse count and full lens anti-masking feature
WXI AM Outdoor 180-degree PIR with antimasking
Filters
X
Filters
Technology
PIR
Detection Range
0m - 15m
Advanced Features
Anti-masking
Pet Tolerance
Communication
Hardwired
Wireless
Mounting
Wall
Intrusion Detection
Outdoor
Intrusion Detection
Technology
WXI-ST Outdoor 180-degree PIR
12m 180 degree outdoor PIR wired
Intrusion Detection
Technology
WXI-RAM Wireless 180-degree PIR with antimasking
- 12m 180 degree outdoor wireless battery operated PIR with anti-masking
- SMDA logic: digital analysis for enhanced environmental variance adaptation.
- Two flexible independent detection areas left and right
- Selectable pulse count and full lens masking detection feature (antimasking)
Intrusion Detection
Technology
WXI-R Wireless outdoor 180-degree PIR
- 12m 180 degree outdoor wireless battery operated PIR
- SMDA logic: digital analysis for enhanced environmental variance adaptation.
- Two flexible independent detection areas left and right
- Selectable pulse count
- 1
Specifications
See details
Details
Product Range
WX Infinity Series
Model Code
WXI-AM
Detection method
Passive infrared
Detection Coverage
180° wide Horizontal 14 pairs, vertical 2 layers
Detectable speed
0.3 to 2.0 m/s (1' to 6'7"/s)
Sensitivity
2.0 °C (3.6°F) at 0.6 m/s Selectable for each side individually
Power input
9.5 – 18 VDC
Current draw
23 mA max. at 12 VDC
Alarm period
2.0 ±1.0 sec.
Warm-up period
Approx. 60 sec. (LED blinks)
Alarm output (R)
28 VDC 0.1 A max. [Individual : Right or General], [N.O. or N.C.] are selectable
Alarm output (L)
28 VDC 0.1 A max. [Individual : Left or General], [N.O. or N.C.] are selectable
Trouble output
N.C. 28 VDC 0.1 A max.
Tamper output
N.C. 28 VDC 0.1 A max. Open when either the cover, main or base unit is removed
LED indicator
Red LED : 1. Warm-up 2. Alarm 3. Masking detection
Operation temperature
-30 °C to +60 °C (-22°F to +140°F)
Relative humidity
95% max.
Installation Method (indoor/outdoor)
Outdoor
Mounting height
0.8 - 1.2 m (2'7" - 3'11")
Weight
440 g (15.5 oz.)
Accessories
Mounting screw (4 x 20 mm) x 2, lock screw x 1
Security Grade
IP55
