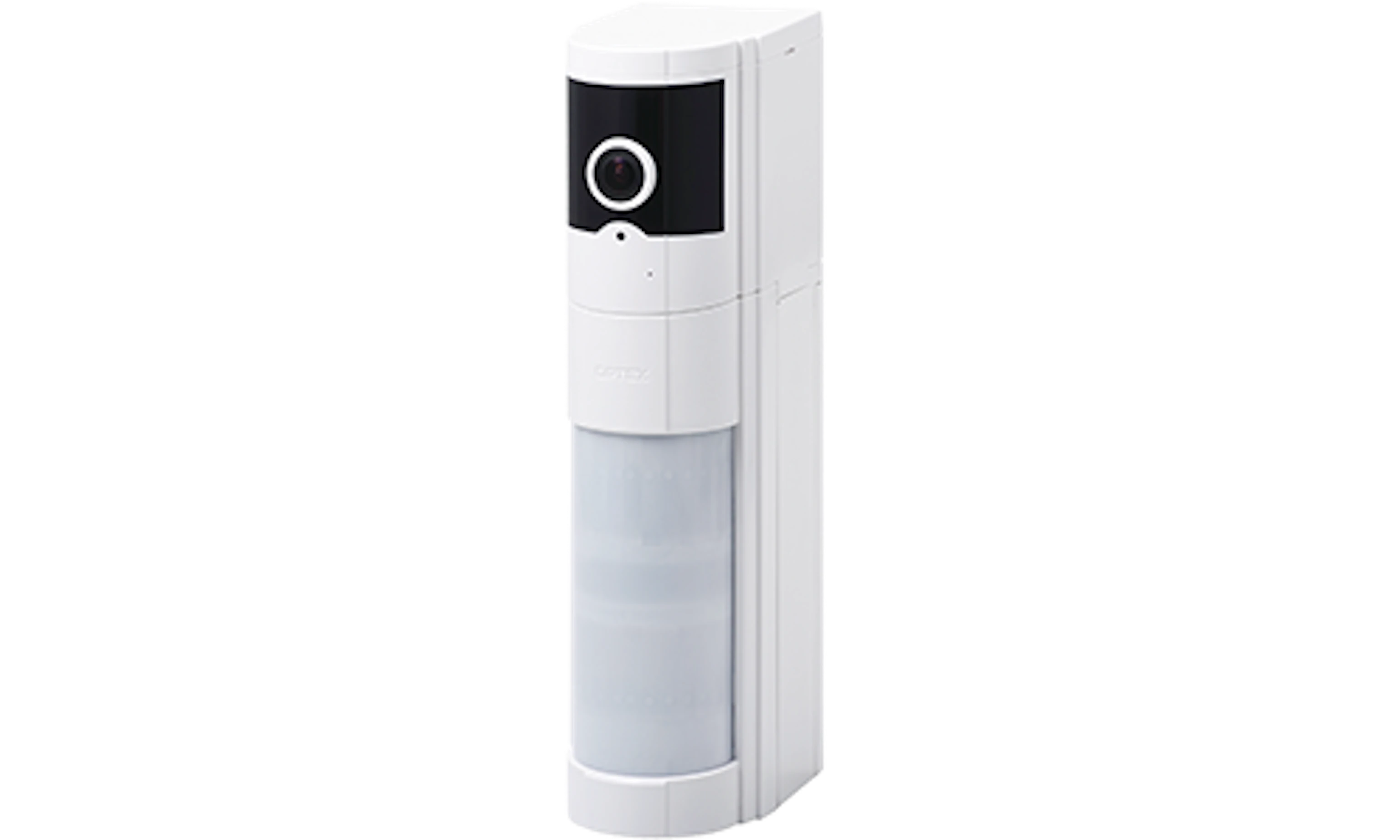

Optex vxi vxi cmod 250x150

Product Details

A powerful combination of intelligent outdoor detection and HD, Wi-Fi camera that delivers a reliable alarm visual verification solution for home and business security. The solution is led by OPTEX's best-selling outdoor intrusion detection sensor range - VX Infinity - and is completed with instant notification, live streaming and recordings from the easy to assemble 180 degree HD camera module with night vision. The outdoor sensor and the Wi-Fi camera can be added to an existing alarm panel or be installed as a separate outdoor intrusion detection solution and managed directly via an App. VXI-DAM is the hardwired dual-tech sensor with anti-masking.

The kits and the VXI-CMOD are only available in certain territories, please check with your local OPTEX representative or contact us.

Instant video verification of outdoor alarm activations

Discover VXI-CMOD product benefits

Intelligent detection with anti-masking

The VXI outdoor intruder sensor series is small animal tolerant; it will not trigger iif cats, dogs (medium sized), birds or insects are in the detection area. Its detection capacity will not be affected by variable lighting or shadows. Additionally, it features OPTEX Super Multi-Dimensional Analysis (SMDA) which can rule out environmental changes such as vegetation sway and weather changes. All those features make the sensor very reliable and therefore notifications will only be sent when a person or vehicle has been detected.

The antimasking feature will alert the system, if the sensor has been blocked, covered, sprayed, etc and can't detect anymore.

Dual-technology for reliable detection even in harsh environments

The VXI-DAM integrated PIR and Microwave algorithm provides the ultimate stability in detection performance. In environments with strong sunlight, light reflections or with extreme temperature changes, the microwave technology can provide a secondary confirmation to the PIR detector due to its improved resistance to these kind of conditions.

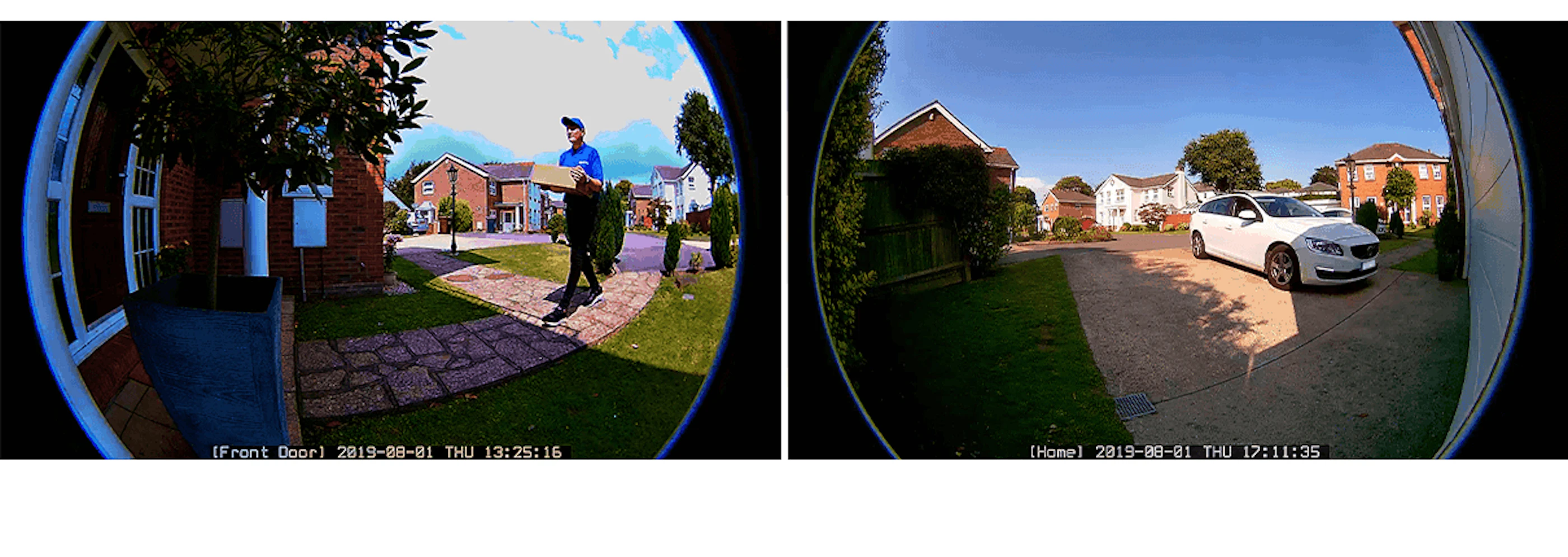

Optex vxi cmod camera view

Instant visual verification day and night

The VXI-CMOD is a wireless Full HD camera module with 180° panoramic angle, with built-in infrared LEDs for enhanced vision at night. The camera streams live view of the event and will also record 2 sec. pre and 28 sec. post-event to determine if it is a real intrusion. A microphone is embedded with the option to enable/disable the audio, and there are zooming functionalities so the user can get a full picture of the events.

Connect via OPTEX Vision App or third-party streaming

When the VXI sensor detects a person or vehicle, it triggers the camera module to send an instant notification to the paired mobile phone(s). Via the dedicated OPTEX Vision App, owners/ carers can conveniently access the live view and audio of the scene, view the recorded events (2 seconds pre-alarm and 28 seconds post-alarm) and share them. Featuring the Real Time Streaming Protocol (RTSP) the visual verification kit can be connected a wider security system, allowing the live stream of the VXI-CMOD camera module to be centrally accessed and recorded.

FAQs

Please use a microSD card with a maximum memory of 32GB and with FAT-32 format (can be formatted with OPTEX Vision App).

The VXI-CMOD camera module cannot be used in conjunction with the battery operated VXI sensors (VXI-R, VXI-RAM ,VXI-RDAM) as the module requires more power than what can be delivered by the battery-powered VXI PIRs / dual-tech. The VXI-CMOD is compatible with the following hardwired models: VXI-ST, VXI-AM, VXI-DAM.

The sensor and the camera module will not be delivered pre-assembled, but the assembly of the camera module (VXI-CMOD) on top the sensor is very easy. Watch the VXI-CMOD installation video for assembly instructions.

The VXI-CMOD doesn’t need an alarm control panel, only a WIFI router and internet connection. You can manage it via the OPTEX Vision App, which allows to access the live stream and audio, get notifications of the alarm activations, see and share the recorded videos.

OPTEX Vision App is the dedicated App for VXI-CMOD. It is compatible with Android and iOS and can be downloaded for free from Google Play or the App store. Quick guide to the installation and set-up of the OPTEX Vision App can be found in the following videos.

View all FAQs
