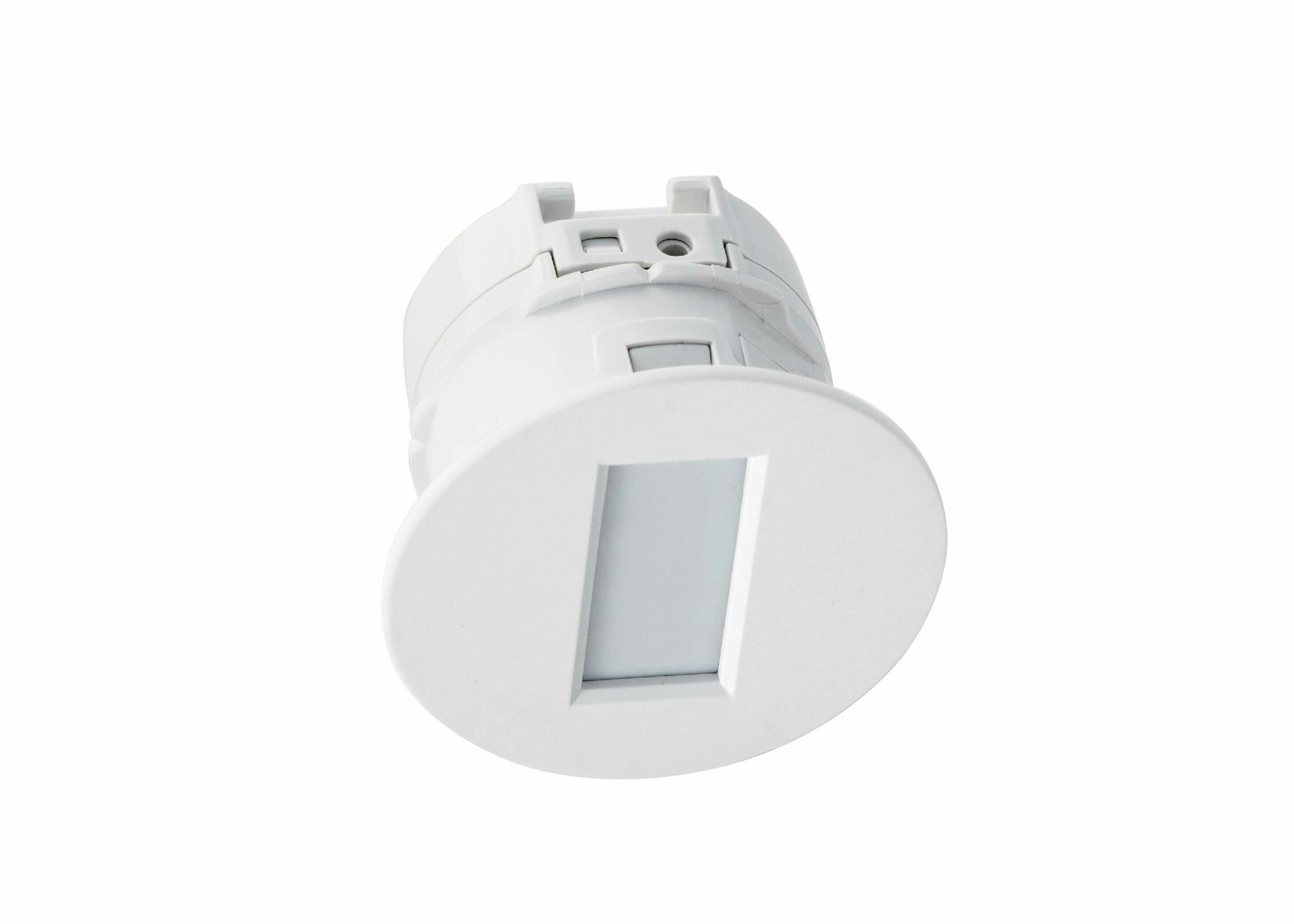

AP-20NB
Compact, recessed mount wired PIR for motion detection
- 6m narrow detection curtain or plane
- High-mount ceiling mount or wall mount
- Recessed or 86-type box mount installation
- Adjustable detection sensitivity

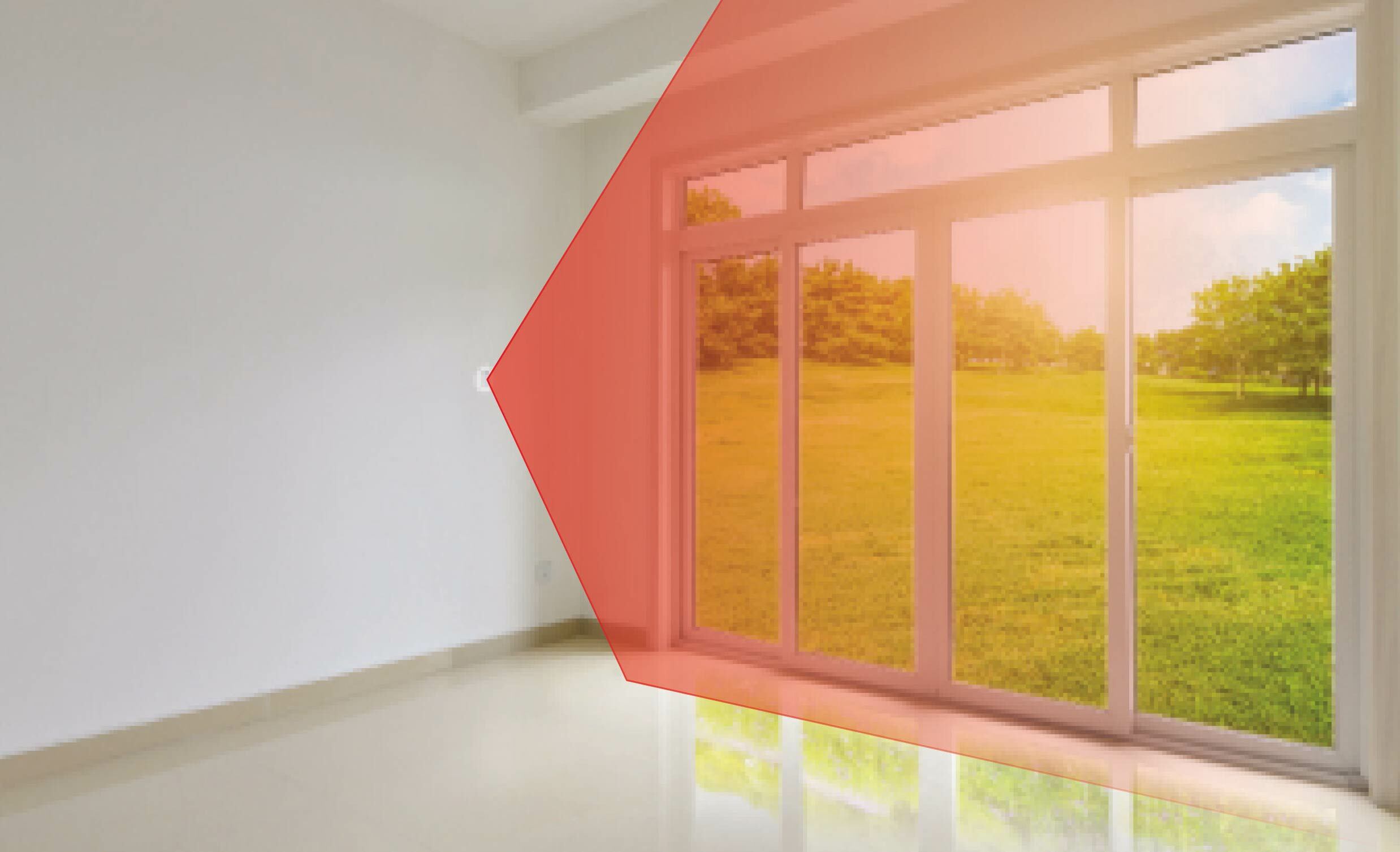

Compact and discreet, AP-20NB can be mounted on a wall or ceiling to create 6m (20ft.) curtain or plane detection areas and alert of movement close to windows, doors, or in corridors.
Specifications
See details
Details
Product Range
AP Series
Model Code
AP-20NB(C)
Detection method
Passive infrared
Detection Coverage
"< Ceiling mount > 6.0 m x 1.0 m (20’ x 3’3”) at 4.5 m (14’9”) height < Wall mount > 6.0 m x 4.5 m (20’ x 14’9”) at 1.5 m (4’11”) height"
Detectable speed
0.3 to 3.0 m/s (1’/s to 9’10”/s)
Sensitivity
2.0℃ at 0.6 m/s (3.6°F at 2’/s)
Power input
9.5 to 16 V DC
Current draw
12 V DC Stand-by: 11mA, Max.: 13 mA
Alarm output (R)
N.O./N.C., 28 V DC 200 mA max.
Trouble output
N.C. 28 V DC 100 mA max. The contact opens once the casing is detached.
LED indicator
Warm-up upon power on: blinking Stand-by: off Alarm: solid on
Operation temperature
-20 to +50℃ (-4°F to +122°F)
Relative humidity
< 95%
Installation Method (indoor/outdoor)
Indoor
Weight
50 g (1.76 oz)
Filters
Filters
Compact, wireless recessed PIR for motion detection and smart automation
- 6m narrow detection curtain or plane
- Wireless ceiling mount or wall mount
- recessed or 86-type box mount installation
- Adjustable detection sensitivity

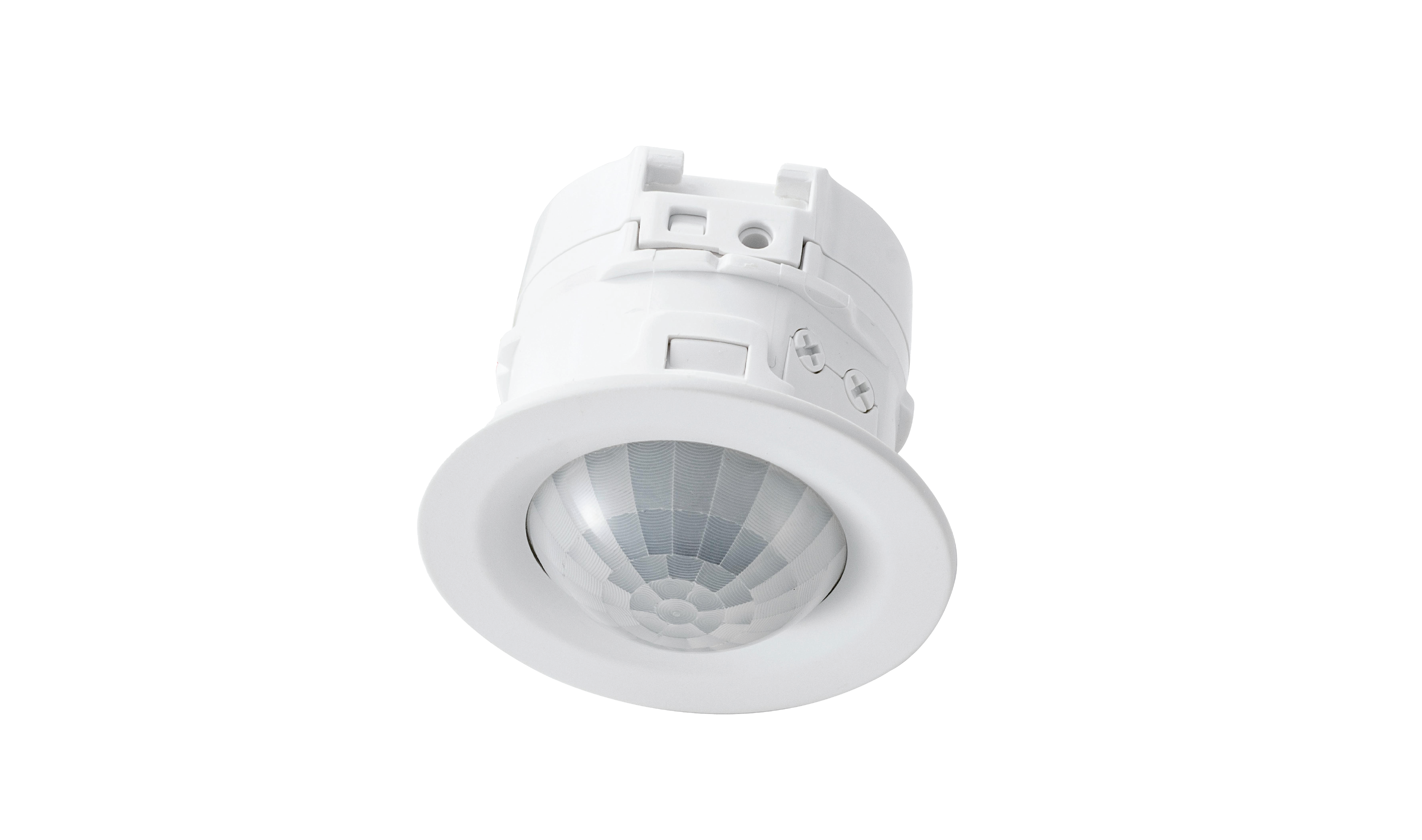

Compact recessed mount wired PIR for motion detection and smart automation
