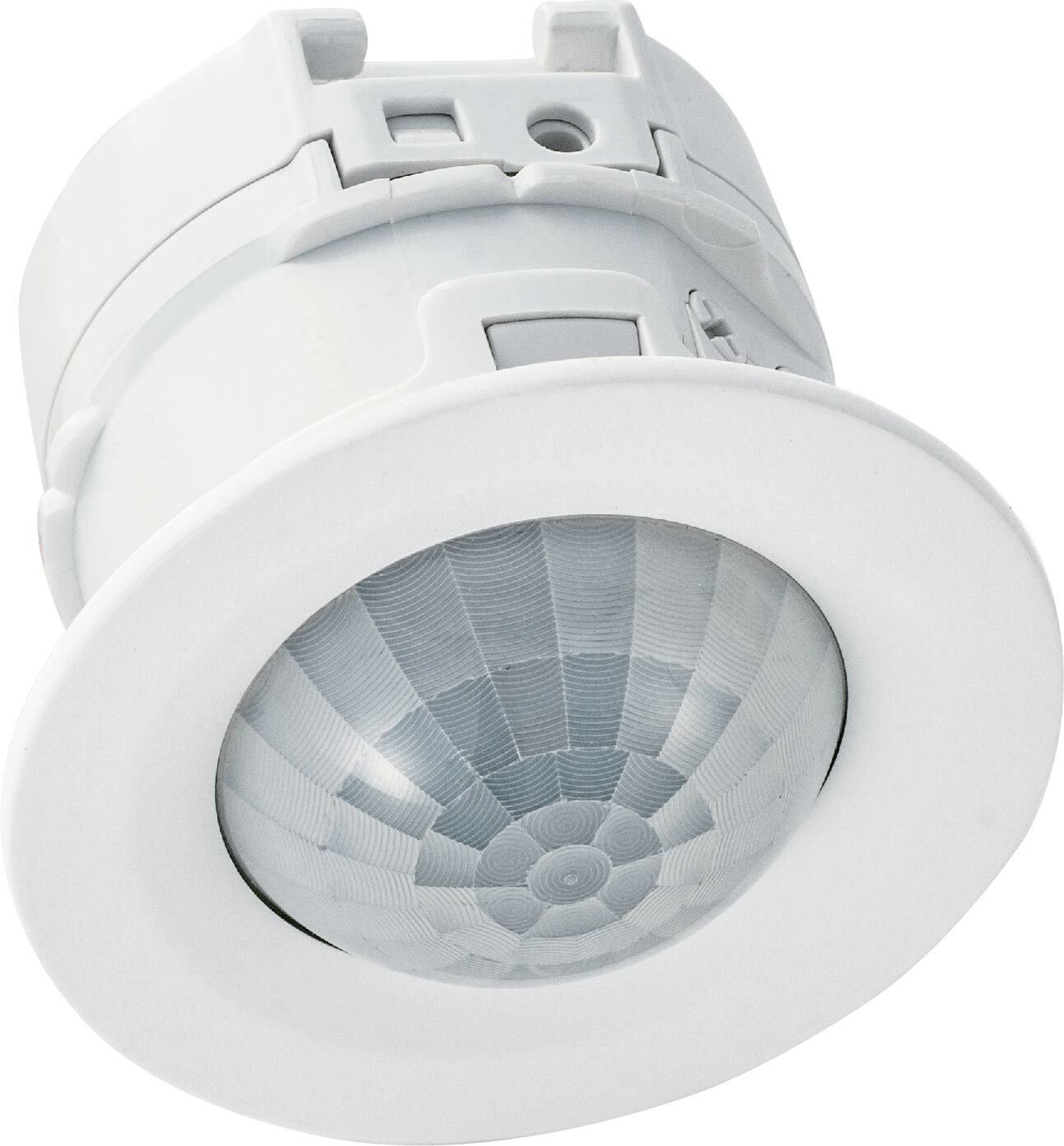

Compact recessed mount wired PIR for motion detection and smart automation

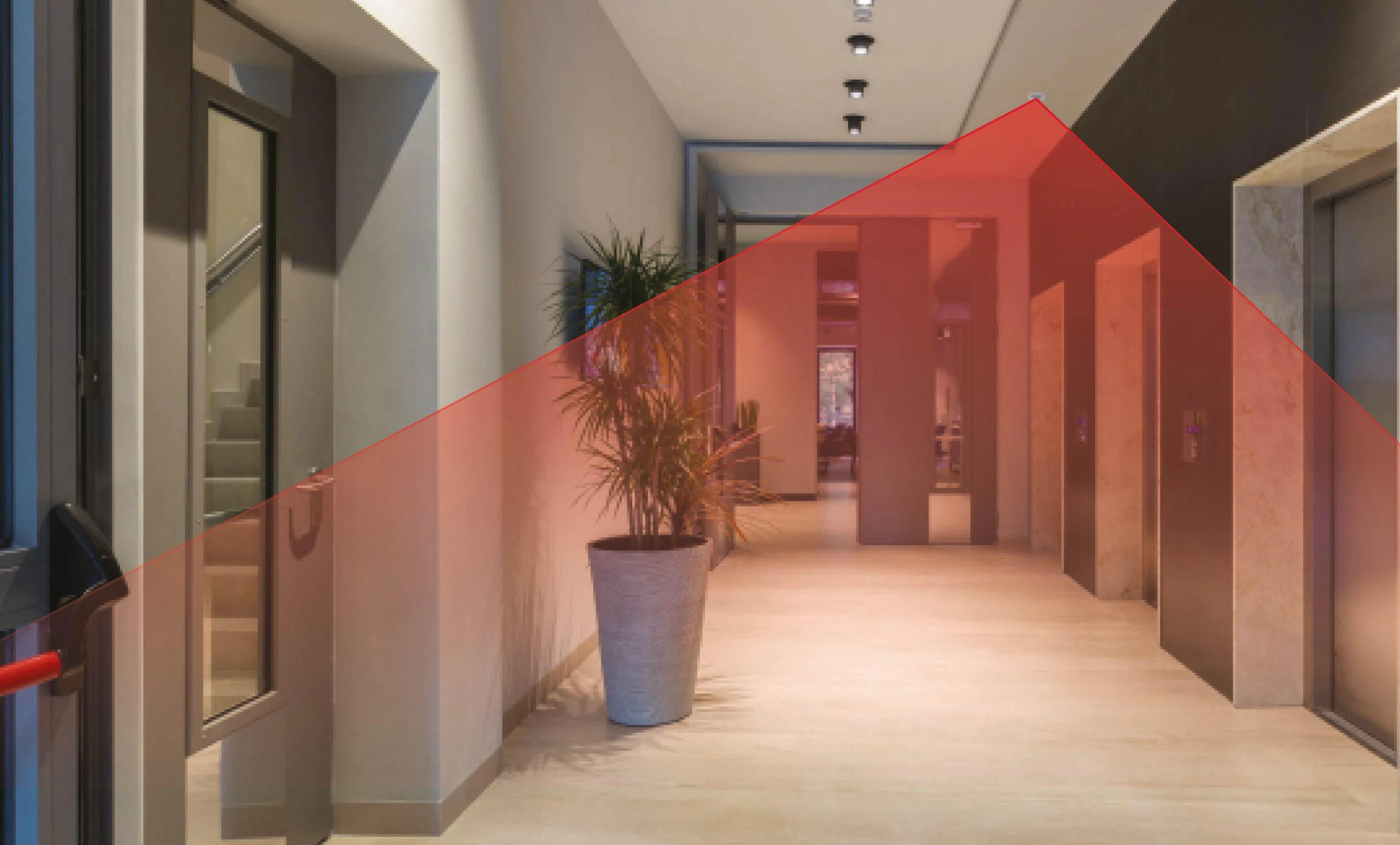

Part of the AP series of recessed mount indoor PIRs, AP-360B is a compact and discreet ceiling mount wired sensor that can detect movement in lobby’s, offices or rooms. Providing 360 volumetric detection it can be used for intrusion detection, light control and home/ building automations.
Part of the AP series of recessed mount indoor PIRs, AP-360B is a compact and discreet ceiling mount wired sensor that can detect movement in lobby’s, offices or rooms. Providing 360 volumetric detection it can be used for intrusion detection, light control and home/ building automations.
Filters
Filters
Compact, wireless recessed PIR for motion detection and smart automation
Compact, recessed mount wired PIR for motion detection
Compact recessed mount wireless PIR for motion detection and smart automation
See details
Details
AP Series
AP-360B(C)
Passive infrared
ø6 m (ø20’) at mounting height:4.5 m (14’9”)
0.3 to 3.0 m/s (1’/s to 9’10”/s)
2.0℃ at 0.6 m/s (3.6°F at 2’/s)
9.5 to 16 V DC
12 V DC Stand-by: 11mA, Max.: 13 mA
N.O./N.C., 28 V DC 200 mA max.
N.C. 28 V DC 100 mA max. The contact opens once the casing is detached.
Warm-up upon power on: blinking Stand-by: off Alarm: solid on
-20 to +50℃ (-4°F to +122°F)
< 95%
Indoor
50 g (1.76 oz)
