Product Details

Part of the AP series of recessed mount indoor PIRs, AP-360BR is a compact and discreet ceiling mount wireless sensor that can detect movement in lobby’s, offices or rooms. Providing 360 volumetric detection it can be used for intrusion detection, light control and home/ building automations.

304 AP 360 B

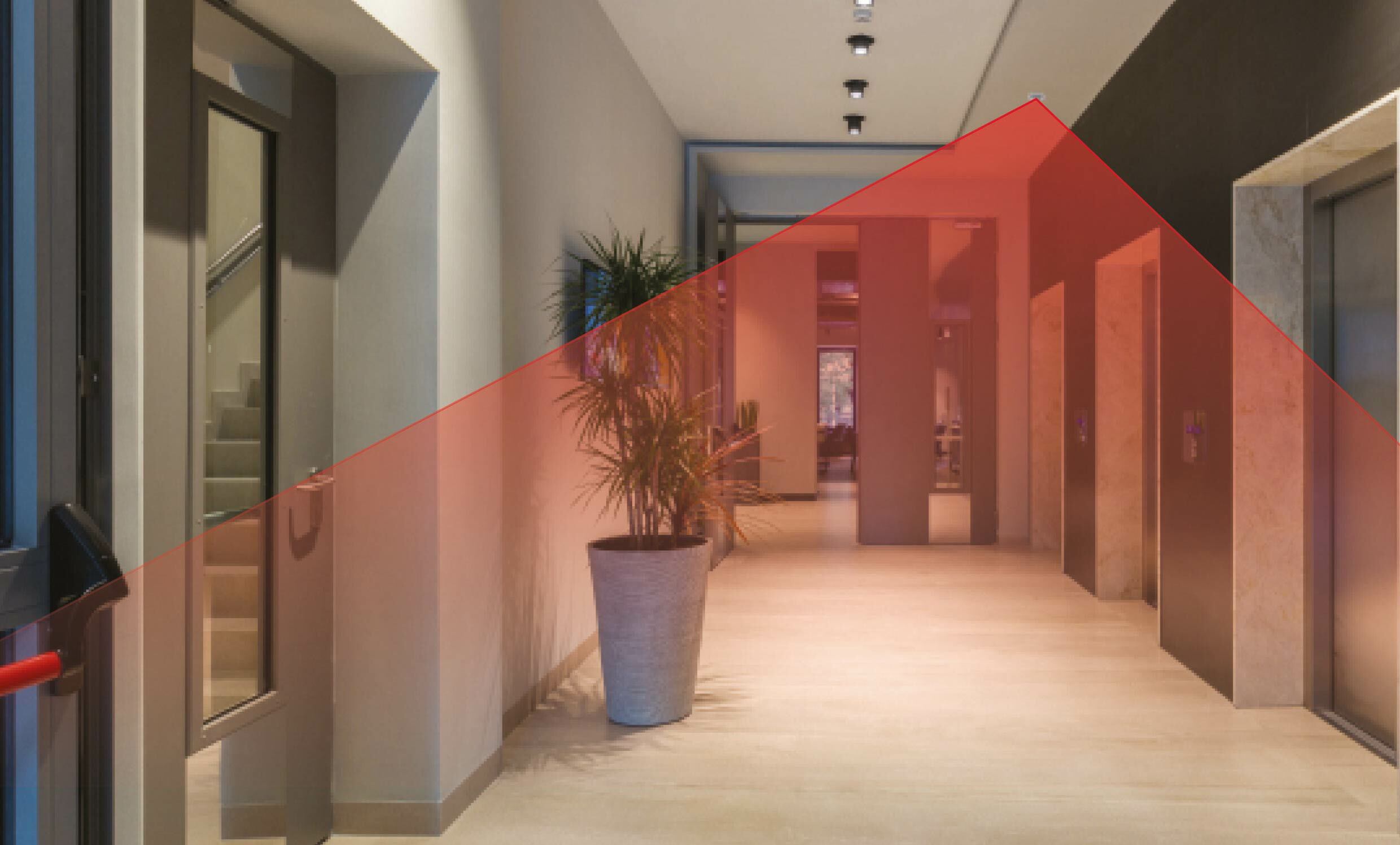

AP-360BR can be used for light control and home/building automation applications, such as triggering escalators, air conditioning, CCTV and audio announcement systems. They work by detecting movement in a 6 meter, 360 degree volumetric area, perfect for use in offices, lobbies, and other rooms where it is necessary to automate a function as people move around.

Discreet recess-mount installation

The AP-360BR sensor can be installed on ceilings with a flexible mounting height between 2.5 m and 4.5m for seamless blending with its surroundings. We also offer a recessed mount with an 86 type box installation using the included decorative plate.

Adjustable detection sensitivity

With adaptability in mind, the AP series' sensitivity can be adjusted to low, medium or high, depending on the needs of the environment.

Energy saving

In AP-360BR it is possible to enable the Battery Saving Timer with a choice between 120 sec. (default) or 5 sec.


  • Buildings
  • Roof / Ceiling
  • House

Key Features

  • Ceiling mount 360 degree volumetric detection
  • High mount between 2.5 m - 4.5 m
  • Recessed or 86-type box mount installation
  • Adjustable detection sensitivity
