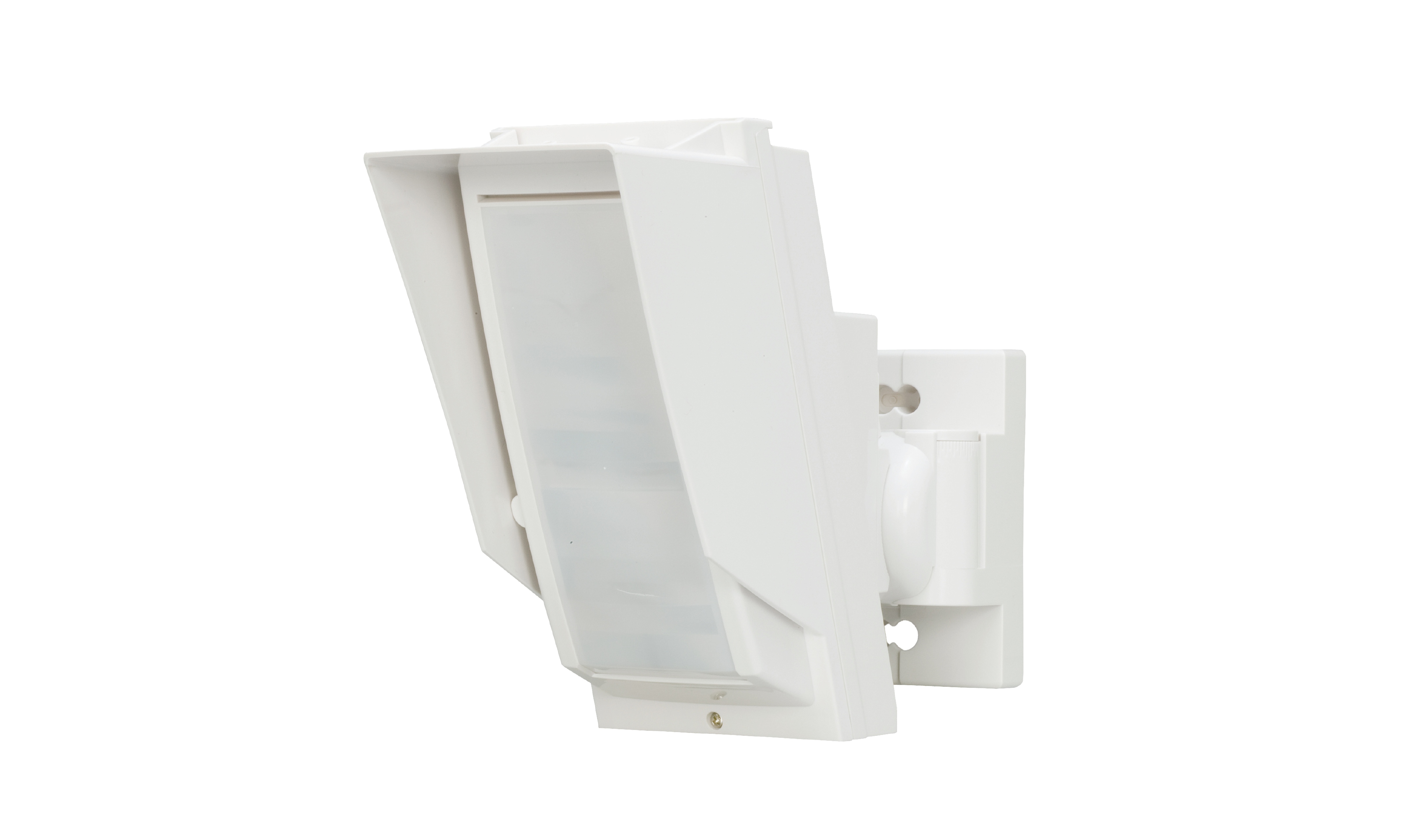

Optex Hx 80N Series 165Px Picture

Product Details

The HX-80N PIRs are mounted between 2.5 and 3 meter high and provide a narrow volumetric outdoor intrusion detection up to 24m. The HX-80N series is ideal to protect alleyways, areas along fences or the immediate approach to a building. It has been designed to differentiate between human and small to medium sized animals reducing a lot the risk of false alarm. The HX-80N is the standard hard-wired model.

Adjustability to the site
Catch performance
To adapt to the slope of the ground, the HX-80N's bracket can rotate horizontal, 180 degree and can be tilted up or down vertically. With its built-in flaps and plates the HX-80N can be easily set up to mask either the longer range or mask shorter ranges and can focus only on the area of interest.The HX Series features superb Catch Performance. The most important element in reliable outdoor detector is accuracy to distinguish a human from a pet. The exclusive pyro element on board enables the HX to project an ideal detection pattern, thus allowing for more accurate detection of humans to prevent false alarms.

Applications

  • Buildings
  • House
  • Garage

Key Features

  • Intelligent & detection logic with unique pyro-element
  • Volumetric outdoor sensor for alleyways
  • Adjustable detection range
  • Animal tolerance and digital analysis

Other products you may be interested in

HX-80NAM Outdoor PIR with antimasking

Optex Hx 80N Series 165Px Picture

24x2m outdoor PIR hardwired with antimasking

  • Volumetric outdoor sensor for alleyways
  • Adjustable detection range
  • Animal tolerance and digital analysis
  • Active infrared antimasking

HX-80NRAM Wireless outdoor PIR with antimasking

Optex Hx 80N Series 165Px Picture

24x2m outdoor PIR battery-powered with antimasking

  • Battery-powered outdoor sensor for alleyways
  • Adjustable detection range
  • Animal tolerance and digital analysis
  • Active infrared antimasking

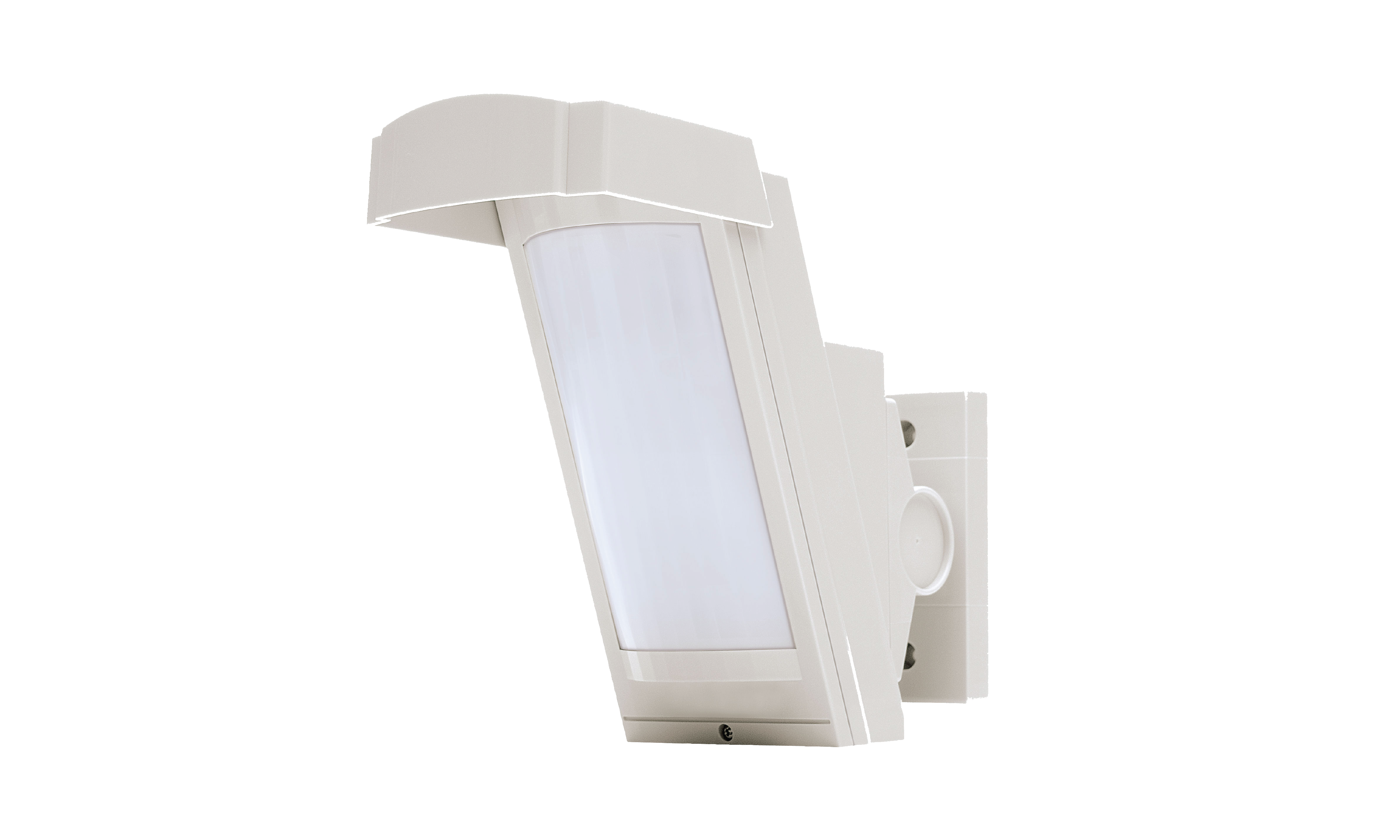

HX-40 High Mount Outdoor PIR

Optex Hx 40 Series 165Px Picture

12m 85 degree outdoor PIR hardwired

  • Advanced temperature compensation logic
  • Volumetric detection sensor
  • Adjustable detection range
  • Animal tolerance

HX-40AM Outdoor PIR with antimasking

Optex Hx 40 Series 165Px Picture

12m 85 degree outdoor PIR hardwired with anti-masking

  • Advanced temperature compensation logic
  • Volumetric detection sensor
  • Adjustable detection range
  • Animal tolerance

HX-40DAM Outdoor dual-tech PIR with antimasking

Optex Hx 40 Series 165Px Picture

12m 85 degree outdoor dual-tech hardwired with anti-masking

  • Dual-tech volumetric sensor
  • Adjustable detection area
  • Animal tolerance
  • Digital analysis

HX-40RAM Wireless outdoor PIR with antimasking

Optex Hx 40 Series 165Px Picture

12m 85 degree outdoor PIR battery-powered with anti-masking

  • Battery-powered volumeric outdoor sensor
  • Adjustable detection length and area
  • Animal tolerance and digital analysis
  • Active infrared antimasking
