VXI-RDAM Wireless outdoor 90-degree dual-tech PIR

Product Details

The VXI series is our best selling outdoor intrusion detection sensor range. It provides a very reliable approach detection with a range of up to 12m for residential and commercial applications. The sensor which should be mounted at ca 1.2m height includes two PIRs providing a double layered detection area, the sensor will only trigger when both layers are activated. The VXI sensors are animal tolerant and feature digital analysis to eclude cause of false alarm. The VXI-RDAM is the dual-technology, battery-powered model with anti-masking. Please note the wireless transmitter is not included.

Digital analysis and dual-tech for ultimate reliability	Flexible detection coverage	The convenience of wireless
The VXI sensors features a digital microprocessor which analyses the infrared emissions received and differentiate the ones generated by human from the ones generated by sunlight, animals, vegetation sway, or weather conditions. Additionally the combined infrared and microwave technology brings a greater level of stability as the complementary technologies need both to triggered to confirm the alarm. This makes the risk of false alarm extremely low.	The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or 2.5m to adapt to the site configuration. The sensor comes as well with a choice of pre-cut masking templates to modify the detection areas and only focus on the points of interest.	The VXI-DRAM sensor can be powered by a variety of universal batteries including CR123, CR2 and 1/2 AA. Its housing can accommodate most wireless radio transmitters available in the market. This makes it easy to add a VXI sensor onto the shed, garage or any outer buildings and link it to an existing wireless alarm panel. It can be also easily installed in remote or temporary locations.

The following table indicates the areas of intended use of the equipment and any known restrictions. For countries not included in this table, please consult the responsible Spectrum Management Agency.

Microwave emission power	Countries
10.525GHz (X5 version)	Belgium, Denmark, Germany, Greece, Iceland, Italy, Luxembourg, The Netherlands, Norway, Spain, Sweden, Switzerland
10.587GHz (X8 version)	France, Ireland, United Kingdom
13.700 GHz	Austria, Czech Republic, Finland, Slovakia

Applications

Buildings
Approach
House
Garage
Driveway

Key Features

12m battery-powered PIR/MW for approach detection
Digital signal analysis to greater reliability
Accommodates most wireless transmitters
Active infrared antimasking

WRS-04

Wall tamper

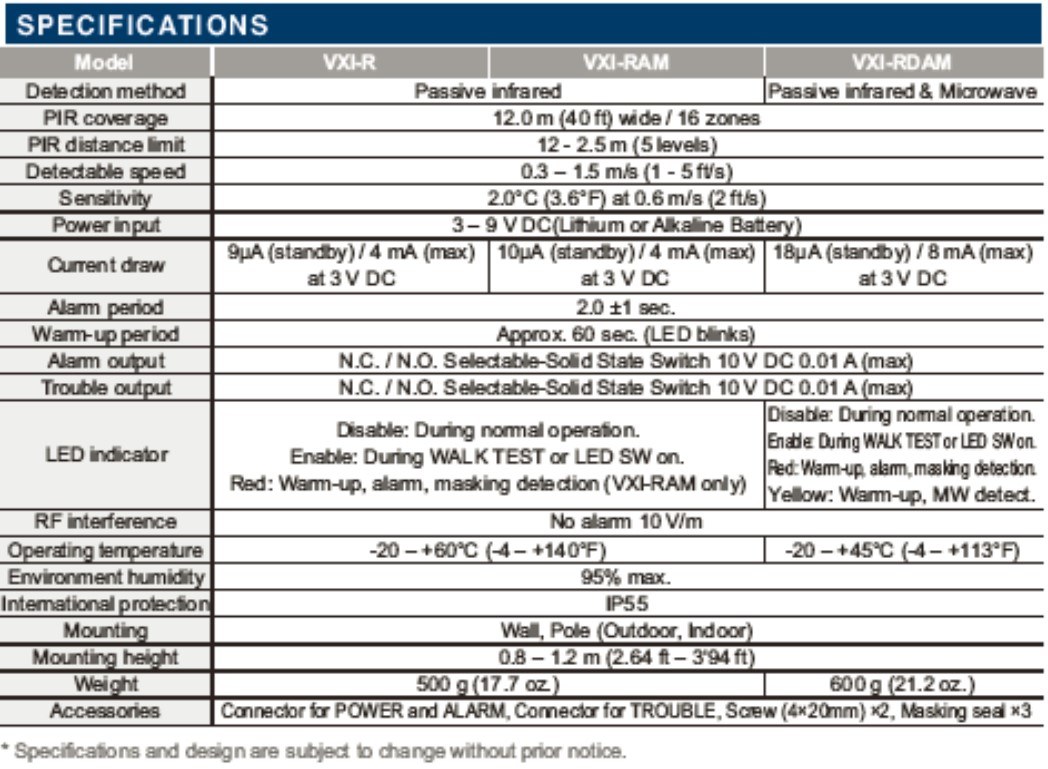

Optex vxi r ram rdam technical specifications

VX Infinity Series - How to enable special detection areas on the VXI?

The detection length can be adjusted to 12m, 8.5m, 6m, 5.5m or 2.5 metres. The VXI will also come with pre-cut masking templates to focus on a particular section of the detection area.

VX Infinity Series - How to adjust the detection settings?

It is important to make sure the VXI is mounted correctly between 0.8 and 1.2 metres because if it is mounted lower or higher than this, it will not detect reliably or accurately. When the mounting process is complete, the lower pyro can then be adjusted between settings 1 to 5 in order to match the required detection area. The sensor range can be adjusted between 2.5 and 12 metres.

It is important to note that each installation is unique, so when you install a detector you need to walk test it to confirm it is detecting where it is supposed to be. Remember to replace the lens before walk testing or you will not achieve the full range.

The maximum detection area of the VXI is a 90 degree detection angle covering 12 metres. The VXI detector comes complete with a set of masking seals, each of which have pre-configured templates. The masking seals work well in tight environments where the standard detection area is too large. By selecting and fixing the correct seal for the environment, the VXI will no longer alarm on areas which could cause nuisance alarms such as public walkways.
