Plug in EOL Resistor Units

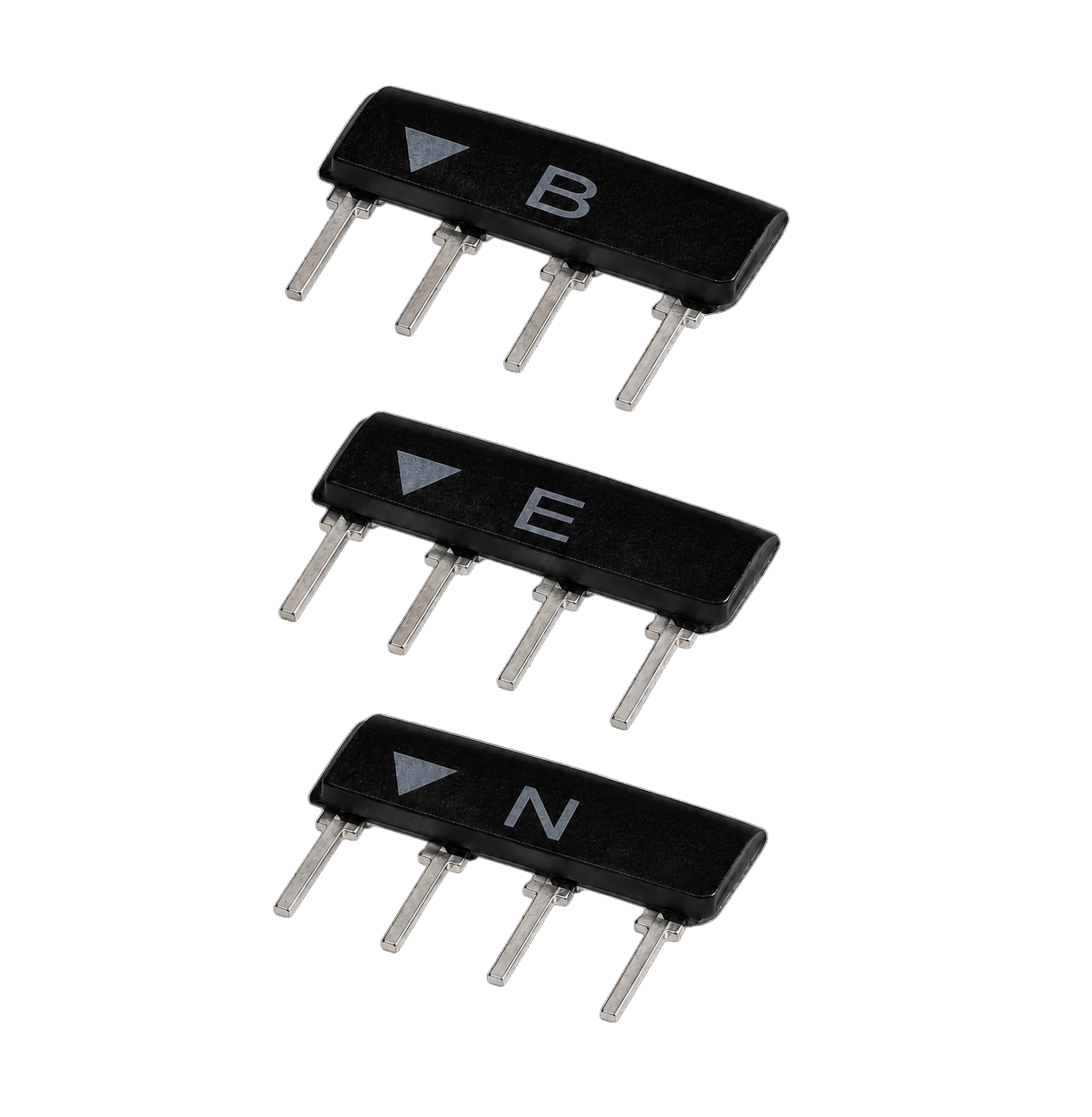

OPTEX Plug-in End of Line Units (PEUs) simplify the EOL wiring process by providing preset resistor combinations for compatible systems. Once the right PEU has been selected for the panel, it can be plugged directly into a compatible OPTEX detector, saving time and reducing wiring errors.
Fitting the correct End-Of-Line (EOL) resistors by hand into the detector terminals on site takes time and can make set up complicated for installers. The OPTEX PEU module contains preset resistance values for the alarm, tamper and trouble outputs. It plugs into the socket inside a compatible OPTEX PIR detector, removing the need to fit separate resistors across individual terminals.
Swipe to view
Swipe to view
Filters
Filters
15mx15m indoor PIR hardwired with digital AIR anti-masking and EOL option.
- Double- conductive Shielding
- Digital IR Anti-Masking
- Interchangeable Main Unit
- Plug in EOL unit option
24x2m indoor PIR, hardwired model.
- Double conductive shielding
- Plug-in EOL unit (option)
- Digital QUAD zone logic
- Active IR Digital Anti-Masking
15m x 15m 85 degree coverage, indoor dual-tech PIR, hardwired. with antimasking.
- Dual technologies (PIR/MW)
- Digital AIR Anti-Masking (Grade 3)
- Digital QUAD zone logic
- Plug in EOL unit (option)
- 12m PIR for approach detection
- Animal tolerance and digital analysis
- End of line resistors option
- Active infrared antimasking
- 12m 180 degree PIR for external intrusion detection with anti-masking
- SMDA logic: digital analysis for enhanced environmental variance adaptation
- Two independent detection areas left and right - ideal for CCTV camera presets
- Selectable pulse count and full lens anti-masking feature
- up to 12m, 180 degree outdoor PIR with anti-masking
- 4 PIR providing left/ right double layered detection for pet tolerance
- Selectable low (0.8m-1.2m) or high (2m) mount
- Independent left/ right detection areas and alarm outputs - ideal for CCTV
- Intelligent 12m PIR with animal immunity
- Active Infrared antimasking
- Easy set up incl. automatic walk test mode
- Versatile design- choice of housing and front covers
- Intelligent 12m PIR with animal immunity
- Active Infrared antimasking
- Easy set up incl. automatic walk test mode
- Versatile design- choice of housing and front covers
Indoor PIR Grade 3 with rotatable lens and antimasking for 15m (50ft) wide detection or 24m(80ft) narrow detection
- Hardwired indoor Grade 3 PIR with rotatable lens
- Wide detection up to 15m, 85 degree, narrow detection up to 24m
- Super sensitivity settings for higher detection performance
- IR antimasking
- Intelligent 12m dual tech for harsher environment
- Active ir antimasking
- Easy set up incl. automatic walk test mode
- Versatile design- choice of housing and front covers
- 1
- 2
- 3
FAQ
There is no single EOL wiring arrangement. The correct method depends on the control panel, its zone programming and the OPTEX detector model.
.Check the control panel manual for the required alarm, tamper and trouble resistance values.
2. Select the PEU with the matching resistance combination.
3. Isolate system power before working on the detector.
4. Insert the PEU into the detector socket, aligning the triangle markings shown in the installation instructions.
5. Connect the power and zone cables to the terminals identified in the detector manual. Depending on the model, these may include ALARM and TAMP terminals or TR, COM and TP terminals.
6. Restore power, program the panel zone and test each available state, including alarm, tamper and trouble.
The following detectors can use our PEU EOL modules: FMX, CDX, VXI, VXS, BXS, QXI, FLX-P, FLX-A, TXI, WXI and WXS,
