For any support requests please contact Dahua. Technical support details are provided below on this page.
Compatibility
The Integration has been made and is managed by Dahua.
| OPTEX product | Dahua compatible NVR | Device Supervision | Status Events | Communication protocol | X/Y Coordinates (REDSCAN only) |
| REDSCAN RLS-3060 vers. 8.3.0.0 + | DHI- NVR5XXX-4KS2 with bespoke Firmware TEMP_Customer_NVR5XXX-4KS2_MultiLang_Optex _V4.001.151Z000.0.T.201030 | Yes (every 5 min) | Alarm, Trouble, Tamper | TCP | not supported |
| REDSCAN RLS-2020 vers 2.0b + | DHI- NVR5XXX-4KS2 with bespoke Firmware TEMP_Customer_NVR5XXX-4KS2_MultiLang_Optex _V4.001.151Z000.0.T.201030 | Yes (every 5 min) | Alarm, Trouble, Tamper | TCP | not supported |
| PIE-1 V1.2.0+ | DHI- NVR5XXX-4KS2 with bespoke Firmware TEMP_Customer_NVR5XXX-4KS2_MultiLang_Optex _V4.001.151Z000.0.T.201030 | Yes (every 5 min) | Alarm, Trouble, Tamper | TCP | not supported |
Note: The PIE-1 is included in the SIP-IP-BOX series and is an accessory to all other hardwire OPTEX Sensors-beams and PIRS. PIE-1 is available throughout EMEA. For other regions, please check with your local OPTEX team. Click here to find out the details of OPTEX companies and subsidiaries.
For all other NVRs please contact Dahua directly.

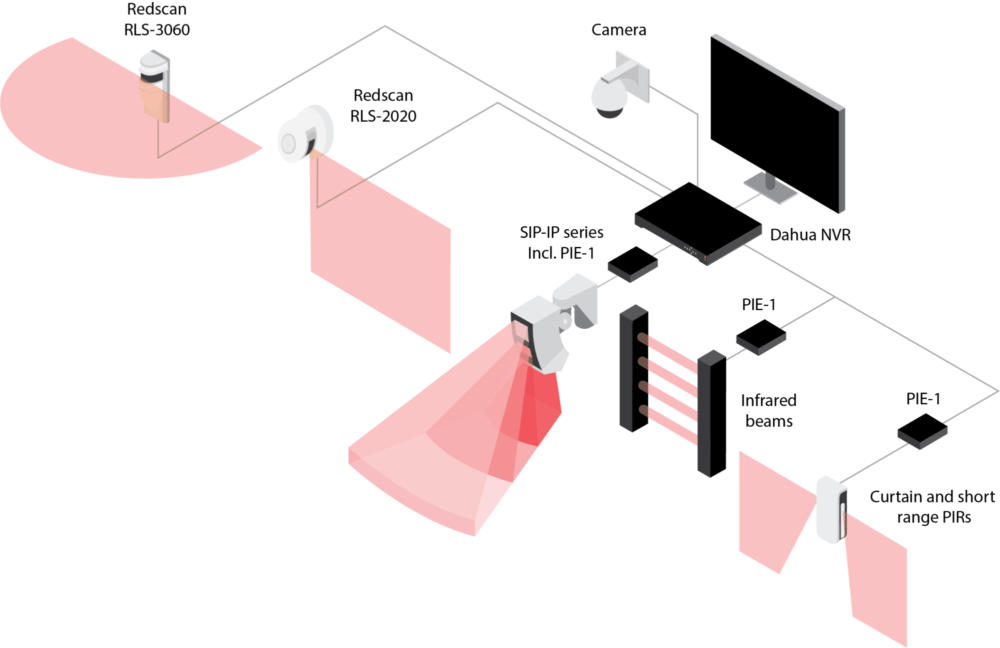

Integration schematic Dahua and OPTEX sensors
OPTEX LiDARs are IP devices and as such will connect directly to the Dahua DHi series NVRs. The passive and active infrared sensors, will connect to the NVR via our IP encoder, called PIE-1. The PIE-1 is included within our long-range SIP-IP outdoor passive infrared range (SIP-IP-Box) but needs to be purchased separately for the other sensors, such as the infrared beams and the short range PIRs and curtain sensors. Our sensors are monitored on the network by Dahua’s DHi NVRs, using a heartbeat. So, if for any reason the sensors are not connected or have been tampered with, this will be notified to the system (allow 5 min before the notification is sent). The sensors’ alarm can be linked to cameras so when an intrusion occurs it triggers the relevant camera to verify what is happening. There is ability to track the intruders across detection zones by activating the PTZ cameras.
All in all, it creates an efficient event-driven security system, managing and verifying alarms, To allow the event-driven recording, the storage schedule would need to be set-up first.
Dahua company profile
Zhejiang Dahua Technology Co., Ltd. is a leading solution provider in the global video surveillance industry. In 2019, Dahua Technology was ranked 2nd in “Security 50” by a&s international. Dahua Technology is committed to providing the highest quality solutions and products with the latest technologies to enable our end users to perform their business successfully. The company has a high-level group of R&D engineers and technical staff working on cutting-edge technologies in camera lens, image sensor, video encoding & transmission, embedded processor, graphic processing, video analytics, software reliability, network security and other technologies.
